Removing Kessy Antenna, Luggage Compartment (B)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The KESSY antenna is located under the floor carpet trim, centrally in the area of the backrest for the rear seat.
For vehicles with the 4-zone air conditioning system, the antenna is located further forward. See main Fig 1 . The reason for this is the rear air guide.
The antennae are accessible from the luggage-compartment.
The antennae are stuck to the floor with double-sided adhesive tape.

Lift central carpet, run a plastic spatula between body floor and antenna and detach antenna by lifting from the adhesive.
Information
- Variant -A- shows the installation position and accessibility for the 4-zone air-conditioning system.
- Variant -B- shows the installation position and accessibility for the 2-zone air-conditioning system.

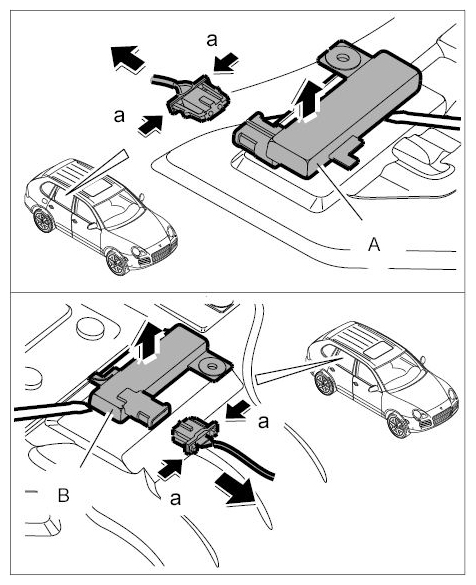

  Fig 1: Removing KESSY Antenna
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull antenna forward, release electric plug -arrows a- and remove from antenna.

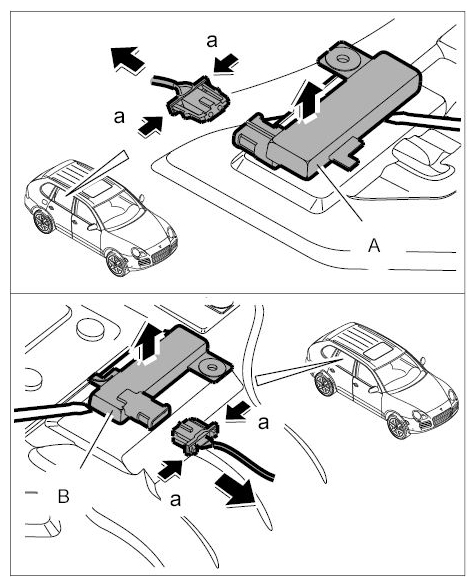

Fig 2: Removing Electric Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
