Installing Kessy Antenna, Luggage Compartment (B)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Remove adhesive residue.
Stick double-sided adhesive tape on bottom of antenna.
Information
- Variant -A- shows the installation position and accessibility for the 4-zone air-conditioning system.
- Variant -B- shows the installation position and accessibility for the 2-zone air-conditioning system .

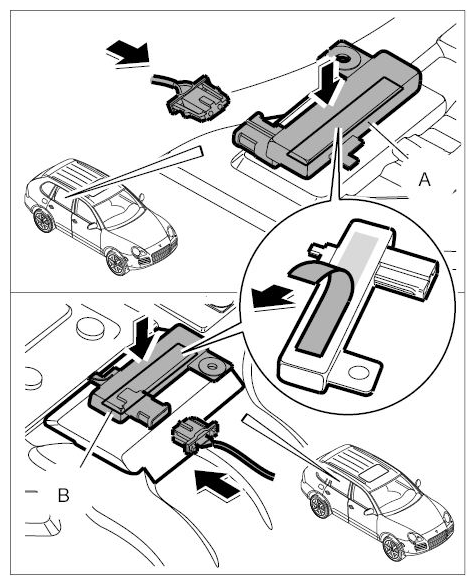

  Fig 1: Installing KESSY Antenna And Luggage Compartment
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push antenna under carpet and push on connector so that lock is felt to engage.

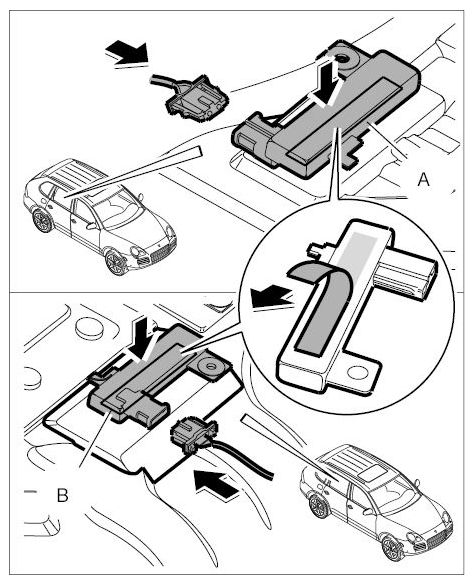

Fig 2: Installing Antenna
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off adhesive film, position antenna and press into place.
Install luggage compartment trim (loadspace cover) → Installing luggage compartment trim (loadspace cover)
