Removing The Alarm Siren

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

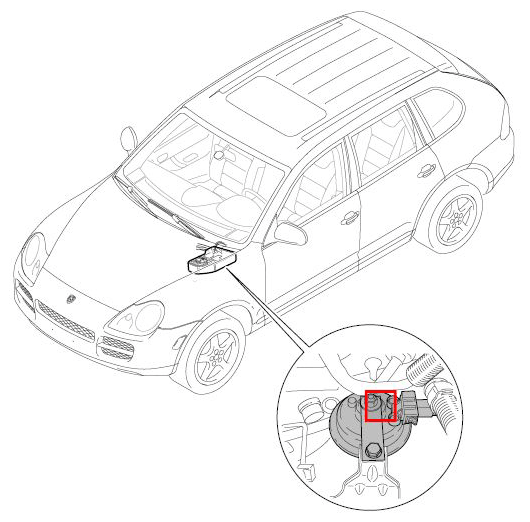

Fig 1: Overview Of Alarm Siren

G09415626

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

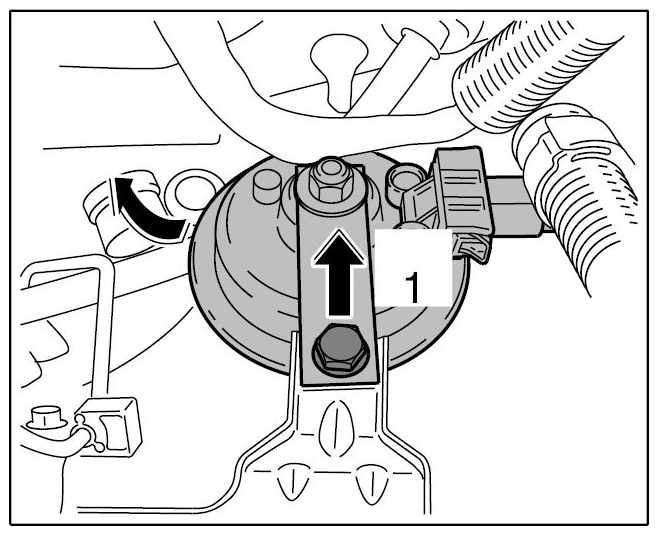

Unscrew fastening screw -arrow 1- and pull the horn aside and upwards -arrow- .

Fig 2: Removing Horn
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

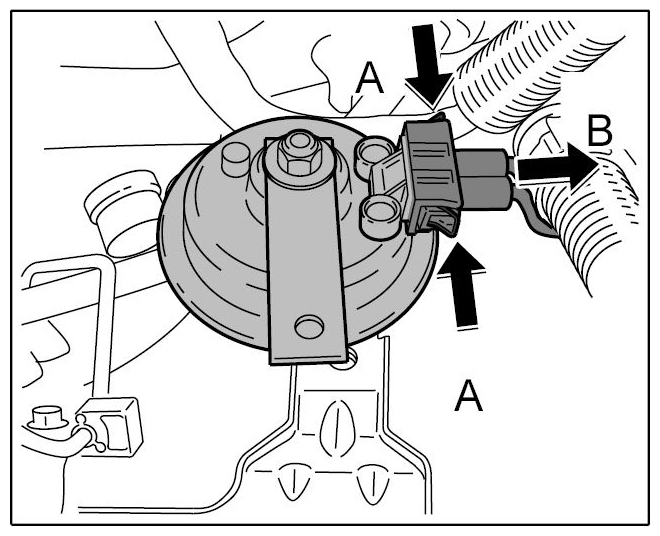

Release the plug -arrows A- and pull it off -arrow B- .

Fig 3: Removing Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
