Installing The Alarm Siren

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the plug to the horn -arrow A-  until the lock -B-  clicks into place.

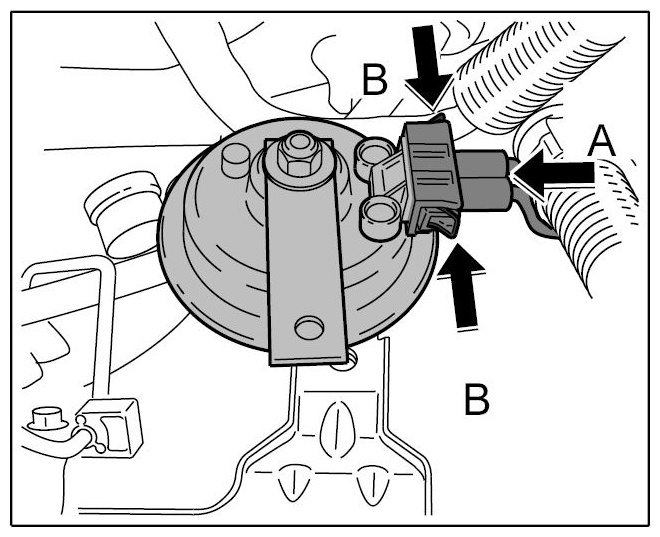

    Fig 1: Inserting Plug
    G09415629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Tightly screw the horn to the holder using the fastening screw -1-  . → Tightening torque: 17 ftlb.

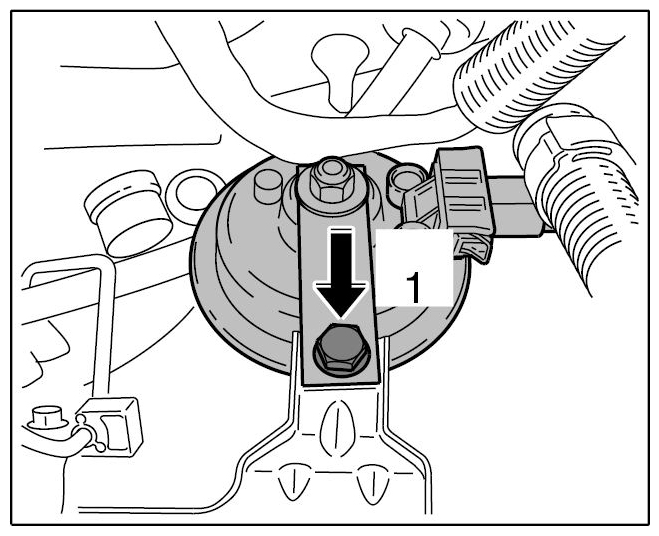

    Fig 2: Securing Horn
    G09415630Courtesy of PORSCHE CARS NORTH AMERICA, INC.
