Removing Tilt Sensor Control Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The tilt sensor is integrated into the tilt control unit and cannot be separately replaced.

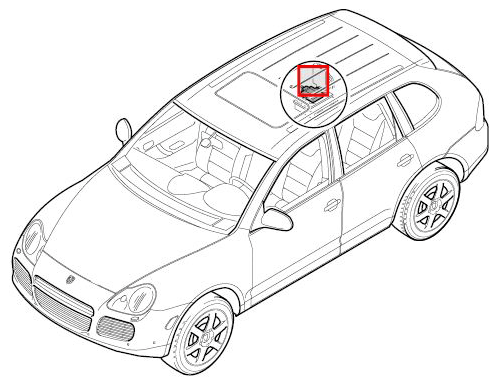

Fig 1: Overview Of Tilt Sensor Control Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch off ignition and remove ignition key.

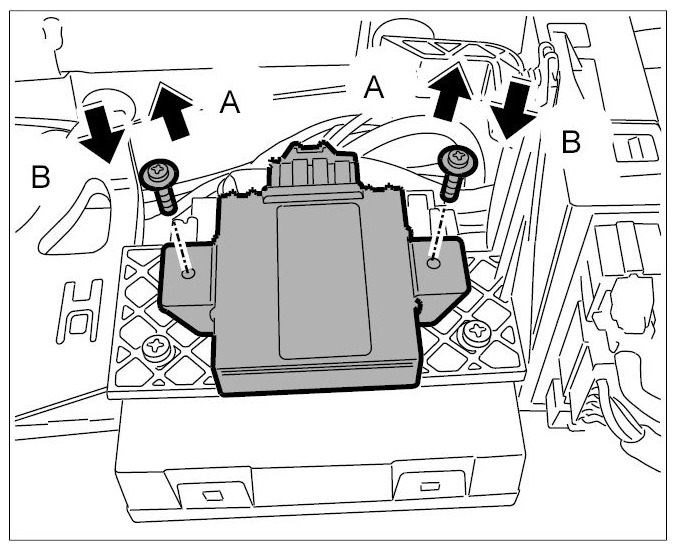

Undo the two fastening screws -arrows A- and remove tilt sensor.

Fig 2: Removing Tilt Sensor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

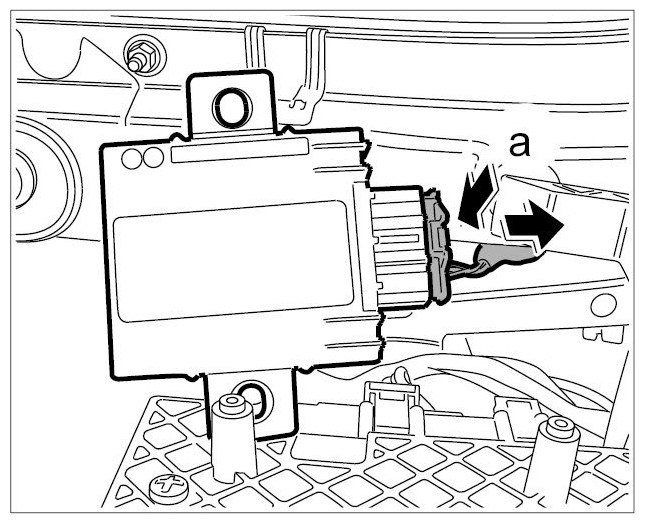

Press detent on plug -arrow a- and pull off plug.

Fig 3: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
