Installing Bulb For Engine Compartment Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

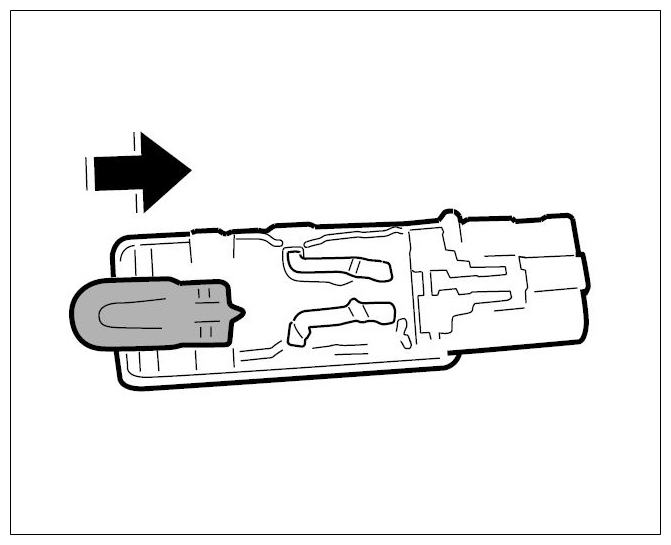

Insert bulb fully into holder.

Fig 1: Inserting Bulb Fully Into Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

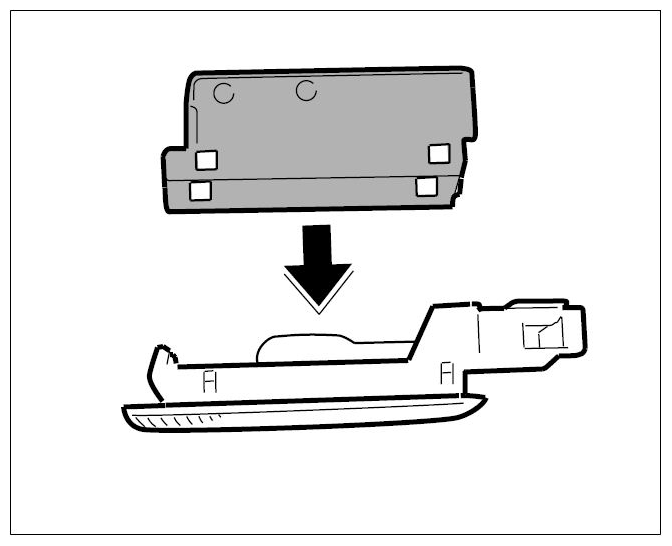

Position sheetmetal cover and press into place. Ensure all four locking elements engage properly and the sheetmetal cover is not deformed.

Fig 2: Positioning Sheetmetal Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

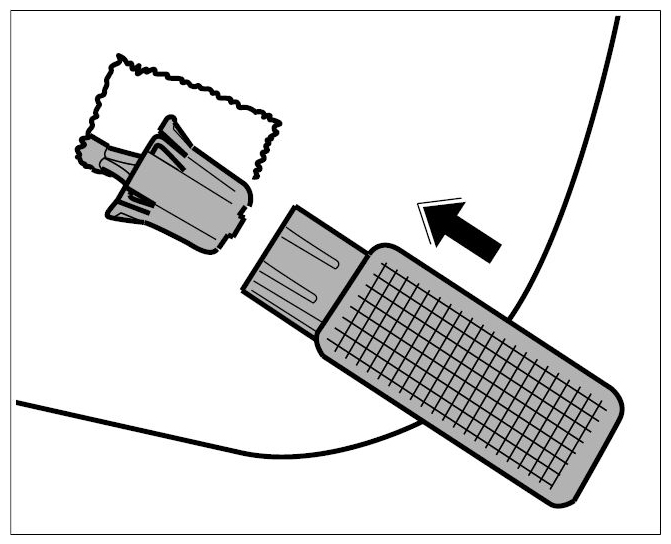

Push in plug until it is felt to engage.

Fig 3: Connecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert light into opening and press into place. Ensure light is fitted properly.
