Removing Contact Switch For Glove Compartment Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

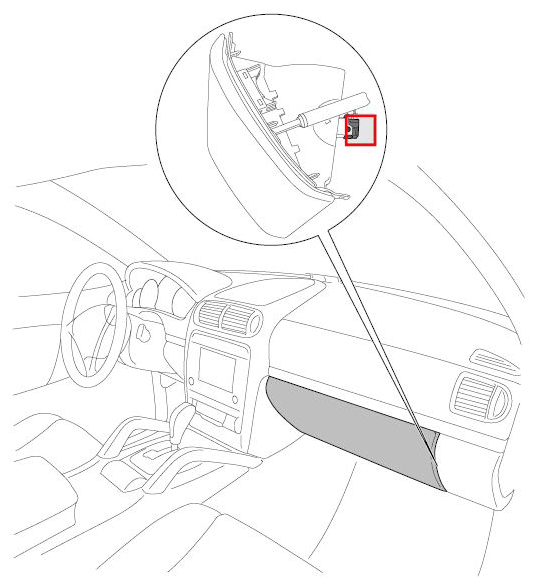

Fig 1: Overview Of Contact Switch For Glove Compartment Light
G09415542Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release connector -Arrow A-  and remove from contact switch -Arrow B-  .
  2. Unlock contact switch -Arrows A-  .

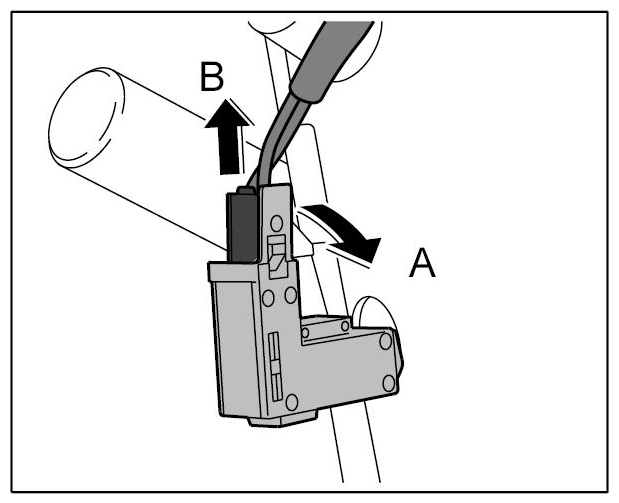

    3. Fig 2: Removing Connector From Contact Switch
    G09415543Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Press contact switch inwards -Arrow B-  until the guide pin -1-  pops out of the bore.

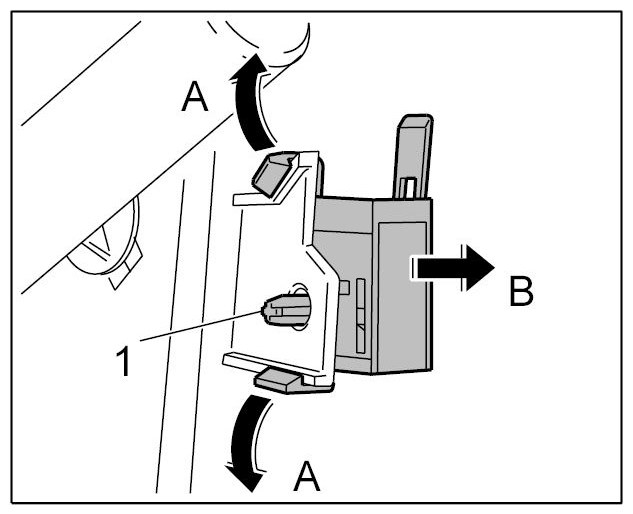

    4. Fig 3: Unlocking Contact Switch
    G09415544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
