Installing Contact Switch For Glove Compartment Light

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert contact switch into the bore -Arrow A-  and screw it into the bracket -Arrow B-  until the locking tabs are felt to engage.

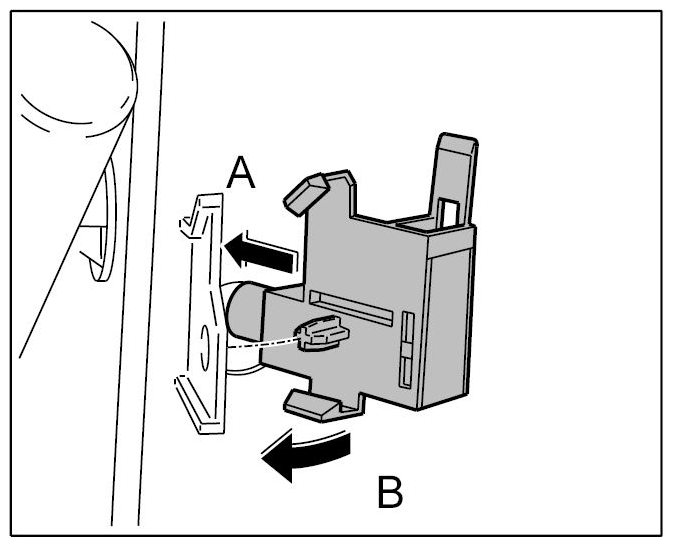

    Fig 1: Positioning Contact Switch
    G09415545Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push connector into contact switch -Arrow A-  until it is felt to engage -Arrow B-  .

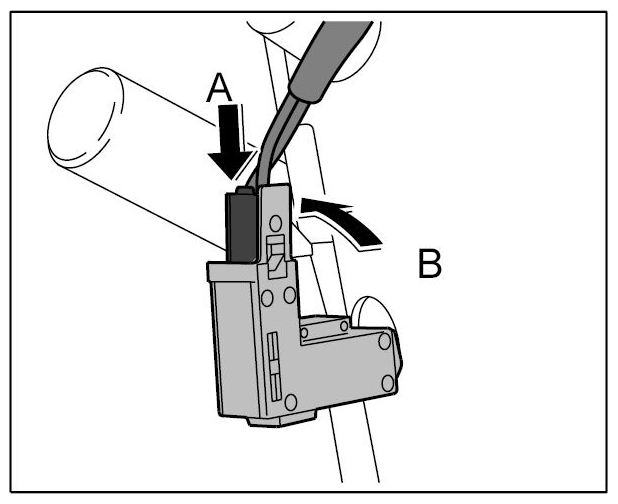

    Fig 2: Pushing Connector Into Contact Switch
    G09415546Courtesy of PORSCHE CARS NORTH AMERICA, INC.
