Removing Rear Cigar Lighter

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

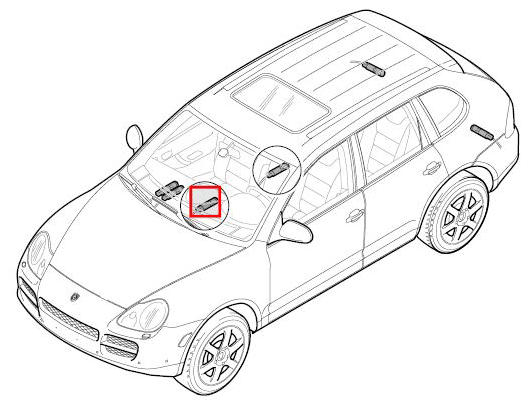

Fig 1: Overview Of Cigar Lighter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Open cupholder and remove completely beyond stop.

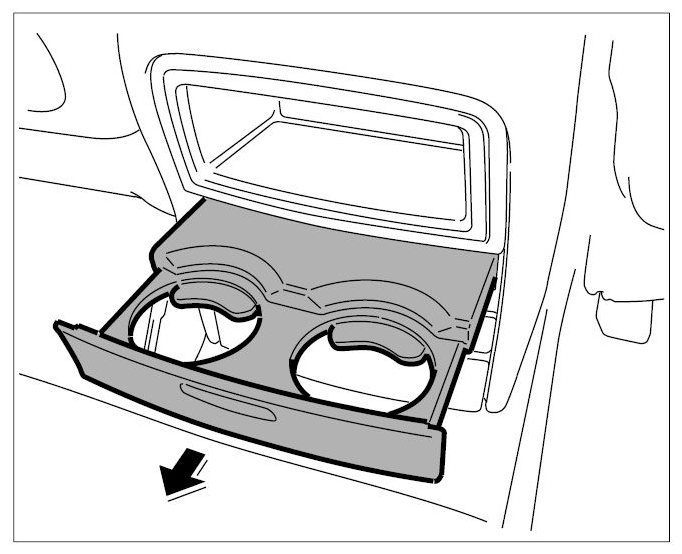

Fig 2: Removing Cupholder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Open rear cigar lighter cover.

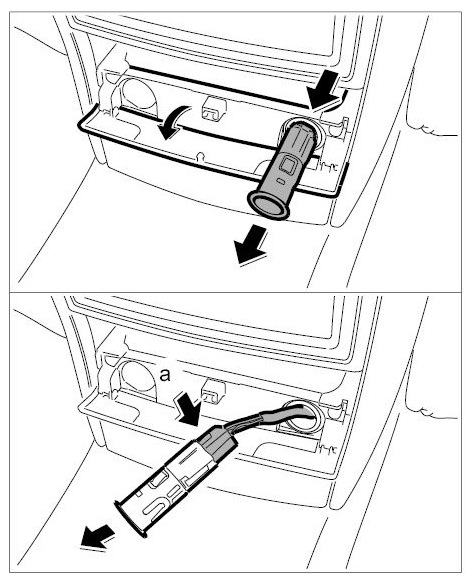

Fig 3: Removing Cigar Lighter
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Reach through the cupholder compartment and press out the cigar lighter from the rear.
Pull out cigar lighter and release -a- and remove connector.
