Removing Front Cigar Lighter

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

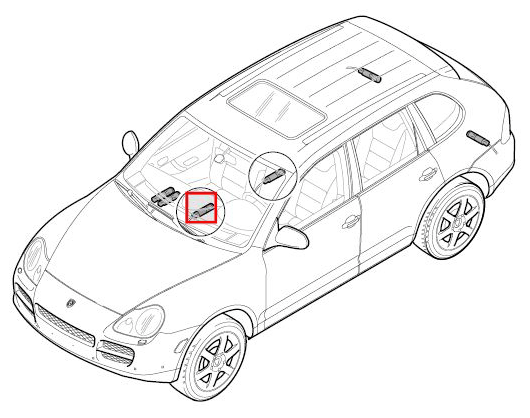

Fig 1: Overview Of Cigar Lighter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

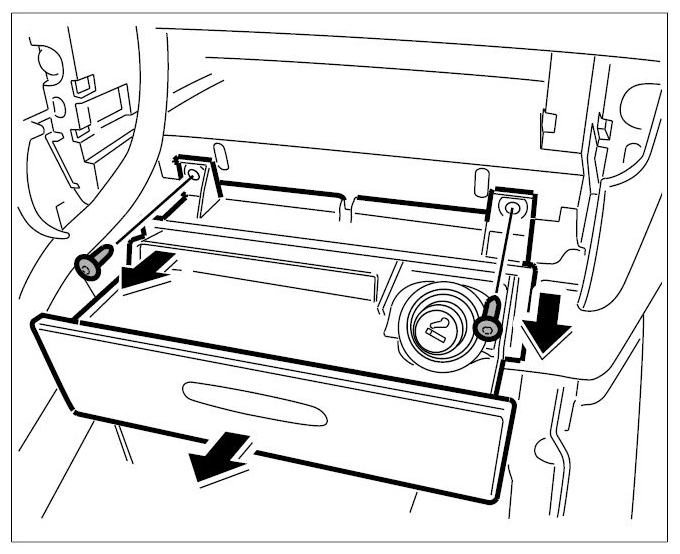

Open the ashtray and remove the two fastening screws.

Fig 2: Unscrewing Ashtray Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the ashtray completely.
Information
- The front cigar lighter can only be replaced together with the ashtray.

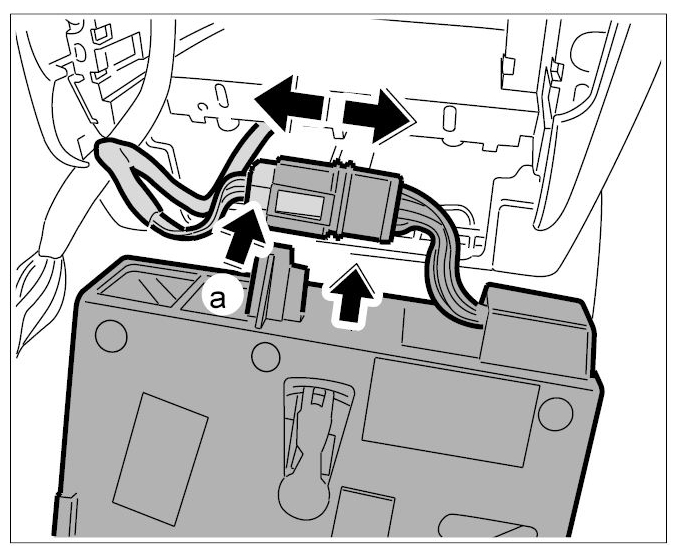

Remove plug from holder, press in -a- and disconnect the electrical plug connection.

Fig 3: Disconnecting Ashtray Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
