Removing Luggage Compartment Socket

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

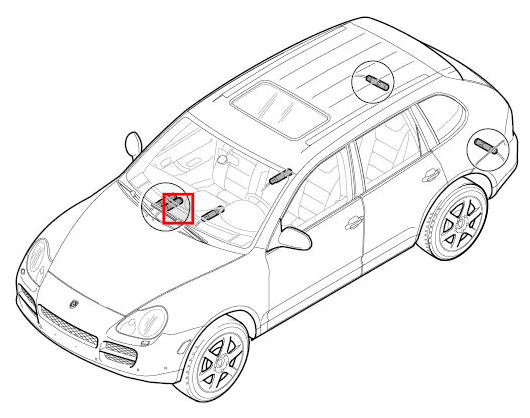

Fig 1: Overview Of Sockets

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the side panel cover at the left or right.
Release plug connection -a- and disconnect.

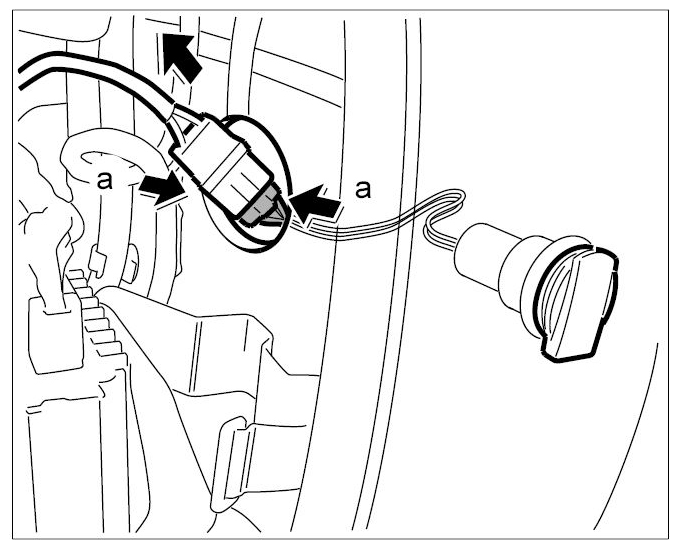

Fig 2: Disconnecting Plug Connection For Luggage Compartment Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull the trim towards the front and use an open-ended wrench 30 to hold the fastening nut behind the trim tight and screw the socket out.

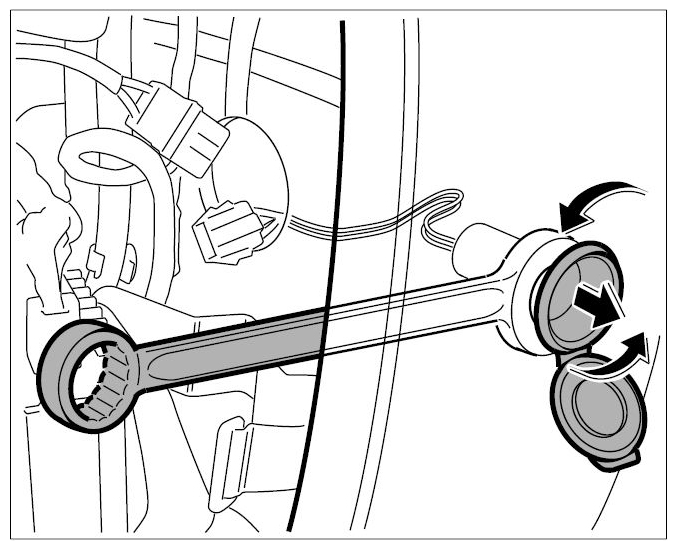

Fig 3: Removing Luggage Compartment Socket
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Ensure the fastening nut does not fall out behind the trim.
Information
- Ensure the fastening nut does not fall out behind the trim.
Remove the open-ended wrench and hold the fastening nut with the hand.
Screw out the socket from the trim. Remove the fastening nut.
