Installing Horn

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical plug, position the horn and secure with the fastening screw. → Tightening torque: 15 ftlb.

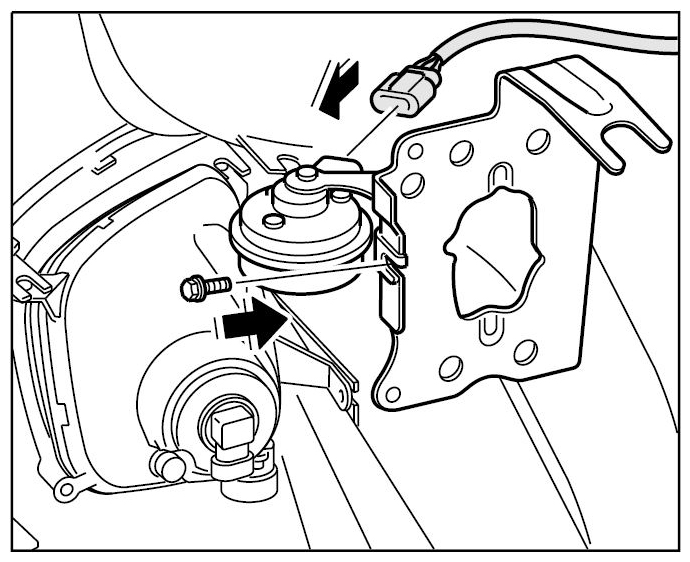

    Fig 1: Installing Horn Plug
    G09414872Courtesy of PORSCHE CARS NORTH AMERICA, INC.
