Removing Rear Anti-Roll Bar (PDCC)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

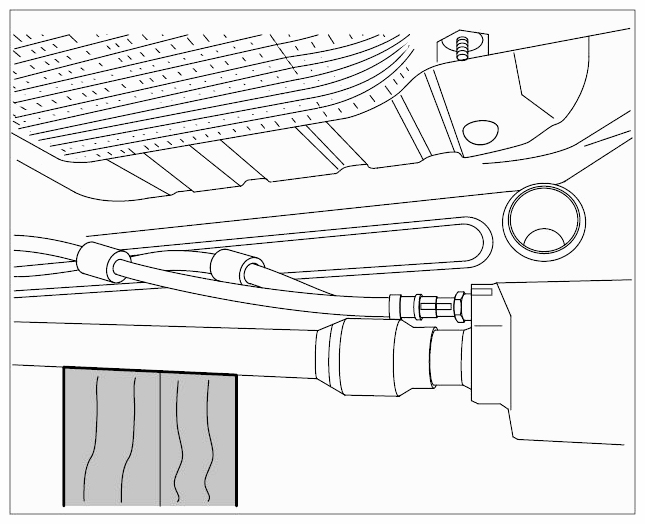

Fig 1: Identifying Rear Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

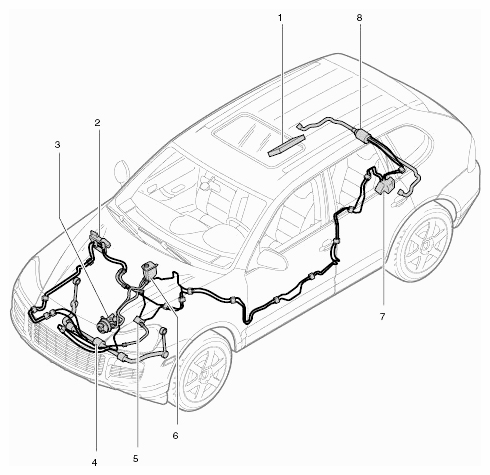

Fig 2: Identifying PDCC Component Arrangement

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

No.	Description of component	Number	Location
1	Control unit	1	Under right rear seat
2	Front valve block	1	Front right wheel housing (A-pillar)
3	Hydraulic pump (tandem pump)	1	Front left engine block
4	Front-axle anti-roll bar (PDCC)	1	Front chassis sub-frame
5	Distributor, power distributor (fluid flow)	1	Front-axle final drive, centre
6	Reservoir (fluid tank)	1	Left plenum panel wall, under left cover
7	Rear valve block	1	Rear left chassis sub-frame
8	Rear-axle anti-roll bar (PDCC)	1	Rear chassis sub-frame

Mark the two lines using a touch-up stick, from the steel flexi-pipe to the anti-roll bar housing. .

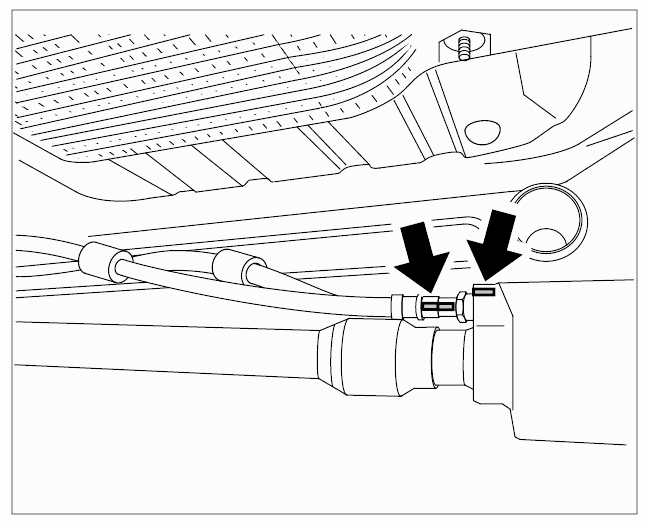

Fig 3: Identifying Marking On Rear Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mark the installation position -arrow- of the anti-roll-bar mount halves with respect to the anti-roll bar with a touch-up stick.

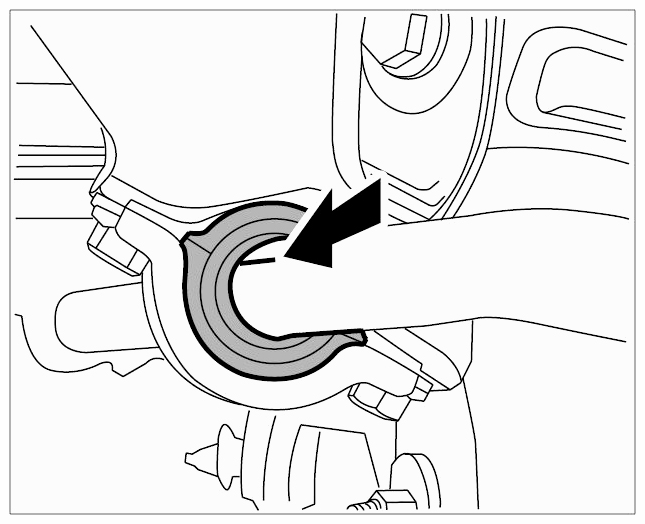

Fig 4: Locating Mark On Anti-Roll-Bar Mount Halves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Support the anti-roll bar in the middle with a transmission jack (use a suitable rubber base) and loosen the four fastening points evenly. Carefully lower the anti-roll bar by approx. 10 cm.

Fig 5: Supporting Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The anti-roll bar halves can turn following removal and hydraulic fluid will leak out.
- Close the openings in the anti-roll bar using suitable plugs or screw plugs.
Loosen the two lines on the anti-roll bar using an open-ended wrench. Use a container to collect emerging fluid and close the lines using suitable plugs.
Loosen the connecting links at the left and right of the anti-roll bar. Carefully remove the anti-roll bar while taking care not to damage adjacent components.
