Installing Rear Anti-Roll Bar (PDCC)

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Rear Anti-Roll Bar

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

WARNING: Wheel bearing housing raised incorrectly

Risk of squashing
Risk of damage to components

→ Wear personal protective gear.

→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting on wheels).

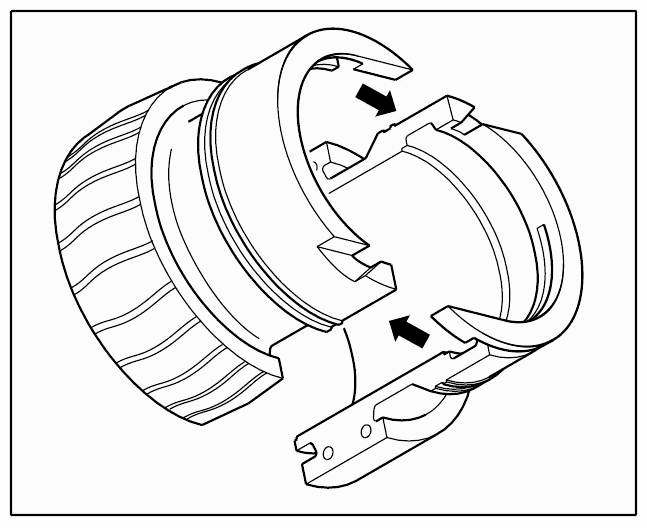

Mount the anti-roll bar halves at the correct position on the anti-roll bar → see Fig 2. The correct position means the larger outer diameter is on the wheel side.

Fig 2: Mounting Anti-Roll Bar Halves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage the anti-roll-bar mount halves at the jacking points provided for this purpose -arrow- .

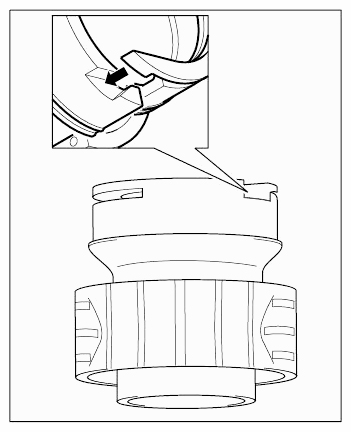

Fig 3: Locating Anti-Roll Bar Halves At Jacking Points
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mount the anti-roll bar on the connecting links.

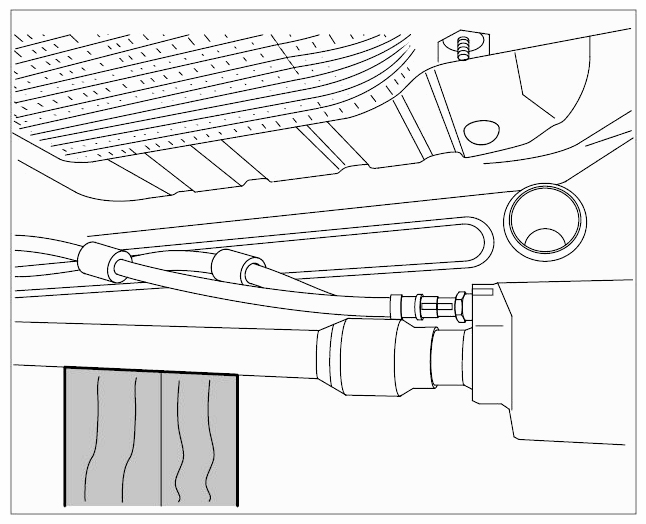

Support the anti-roll bar in the middle with a transmission jack (use a suitable rubber base) and raise it carefully until approx. 10 cm from installation position. Fit the steel flexi-pipes loosely.

Fig 4: Supporting Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

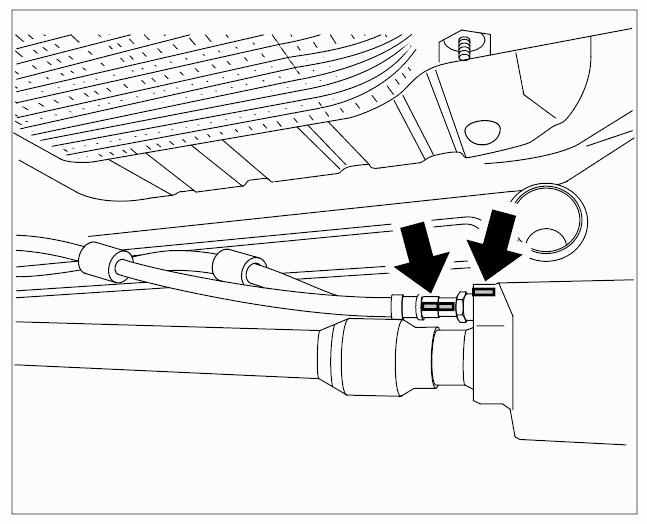

Tighten the two steel flexi-pipes (observe markings → .

Fig 5: Mounting Anti-Roll Bar Halves
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

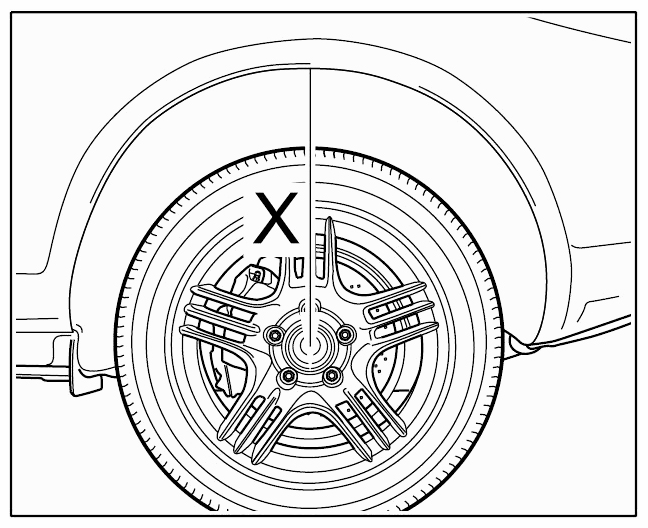

- The entire threaded parts of the axle must be tightened in vehicle position! Vehicle position means: vehicle standing on the wheels, or the wheel suspension is being raised with a universal vehicle lift. Dimension -X- , from lower edge of wing to middle of axle 506 mm ± 10 mm corresponds to vehicle position.

  Fig 6: Locating Anti-Roll-Bar Mount Halves At Jacking Points
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Visually inspect all parts.
- Replace self-locking nuts.
- Replace all expansion screws (screws which are fitted with torque angle tightening procedure).
- Observe tightening torques → WM 4200TW TIGHTENING TORQUES FOR REAR AXLE .
Fit the anti-roll bar and secure the four mounting points evenly, in vehicle position.

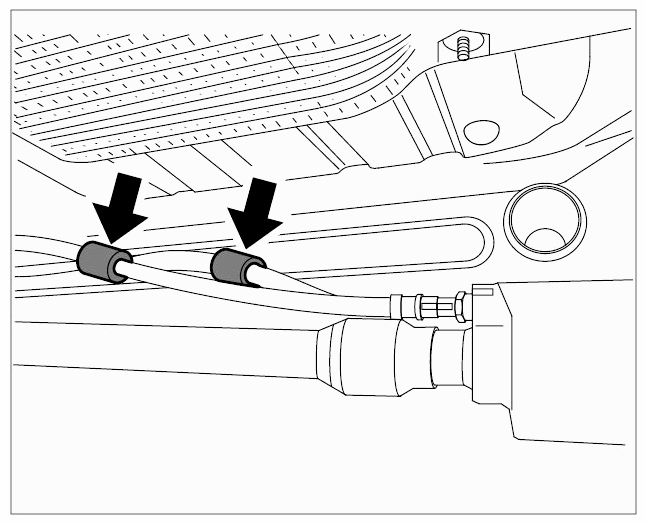

Following assembly, check carefully once again that the steel flexi-pipes are not twisted! The toothed rings must be positioned on the steel flexi-pipes in such a way that they provide adequate protection in the event of contact with adjacent components.

Fig 7: Supporting Anti-Roll Bar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
