Distinguishing Feature And Allocation Of Coil Springs And Shock Absorbers
WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

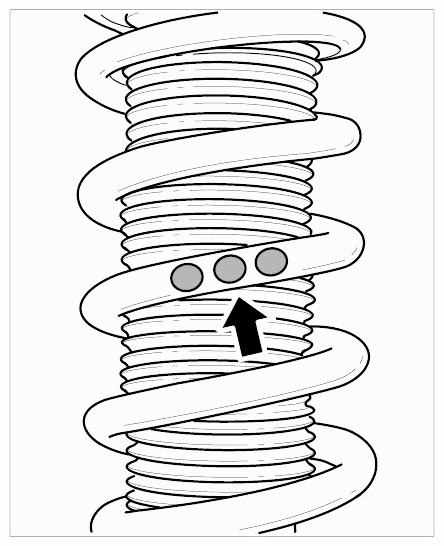

The coil springs are allocated using coloured dots -arrow- . Grey is used for the Cayenne and white for the Cayenne S → ALLOCATION OF COIL SPRING AND BOTTOM SUPPORT . .
| Model | Coil spring colour coding |
|---|---|
| Cayenne | Grey (1 - 3 dots) |
| Cayenne S | White (1 - 3 dots) |
The shock absorbers are allocated using the spare part numbers and the model specification. At present, three different shock absorbers are used on the rear axle of the Cayenne and Cayenne S. .
