Tools And Materials: Tools

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Tool overview for wheel bearing

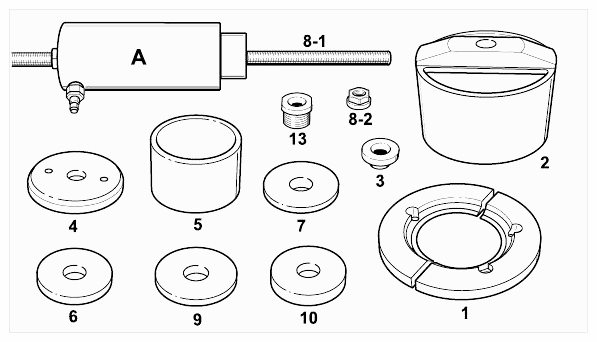

Fig 1: Identifying Tools For Wheel Bearing

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

-A- - Tubular piston cylinder VAS 6178 (The tubular piston cylinder is used together with the pneumatic hydraulic pump.)
-1- - T10205/1 grip piece from attachments T10205 (To press the wheel hub out of the wheel bearing.)
-2- - T10205/2 bell from attachments T10205 (To press out the wheel hub. To pull off the wheel bearing inner race from the wheel hub, use together with separator 12 - 115 mm ø No. 111.)
-3- - T10205/3 pressure piece from attachments T10205 (To press out the wheel hub.)
-4- - T10205/4 mounting from attachments T10205 (To press out the wheel bearing.)
-5- - T10205/5 pipe from attachments T10205 (To press out the wheel bearing.)
-6- - T10205/6 pressure disc from attachments T10205 (To press out the wheel bearing. And to press in the wheel hub.)
-7- - T10205/7 pressure piece from attachments T10205 (To press in the wheel bearing.)
-8-1- - T10205/8-1 threaded rod from attachments T10205 (Used in the tubular piston cylinder -A- .)
-8-2- - T10205/8-2 threaded nut from attachments T10205 (Used on the threaded rod -8-1- .)
-9- - T10205/9 pressure piece from attachments T10205 (To press in the wheel bearing.)
-10- - T10205/10 pressure piece from attachments T10205 (To press in the wheel hub.)
-13- - T10205/13 push button from attachments T10205 (Used in the tubular piston cylinder -A- .)
