Removing Rear Tie Rod

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

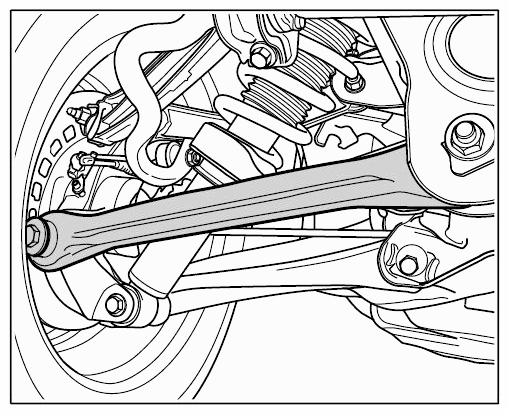

Fig 1: Identifying Tie Rod (Toe Control Arm)
G09419049Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Mark the position of the toe eccentric for re-installation.
  2. Release tie rod at suspension sub-frame (eccentric screw) and at wheel carrier. Pull out tie rod.

    To make removal easier, raise wheel carrier slightly with universal jack! → see Fig 2 Use rubber base to prevent wheel carrier from slipping!

    Fig 2: Removing Wheel Carrier
    G09419050Courtesy of PORSCHE CARS NORTH AMERICA, INC.
