General Information

The steering-angle sensor is integrated into the → Fig 1 steering column switch.

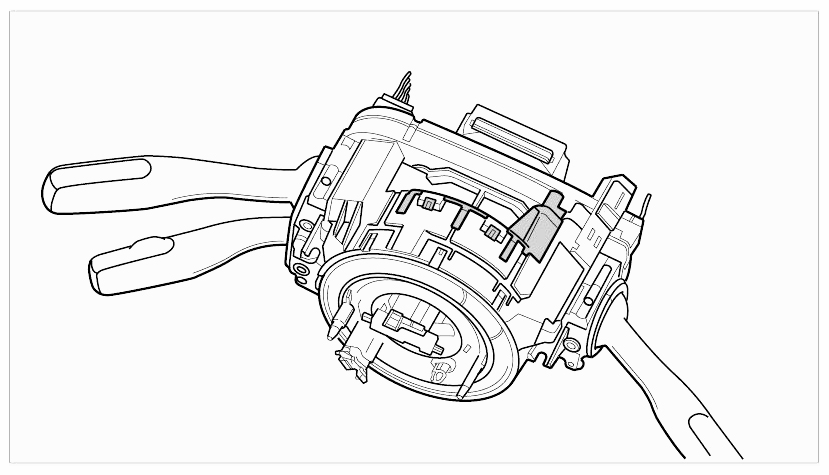

Fig 1: Identifying Steering-Angle Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The steering angle is recorded in the contact unit for airbags (spiral spring) -C-  . The sensed data is sent from the electronic unit -E-  via the drive CAN bus to various systems (e.g., PSM, corner-sensitive headlight) for further processing. Replacement of the steering-angle sensor requires the steering column switch to be removed.

If faults have been diagnosed on the steering-angle sensor, the steering column switch must be disassembled into the components -A, B, C, D, E-  .

The steering-angle sensor can only be replaced together with the contact unit for airbag -C-  (spiral spring) and the electronic unit -E-  .

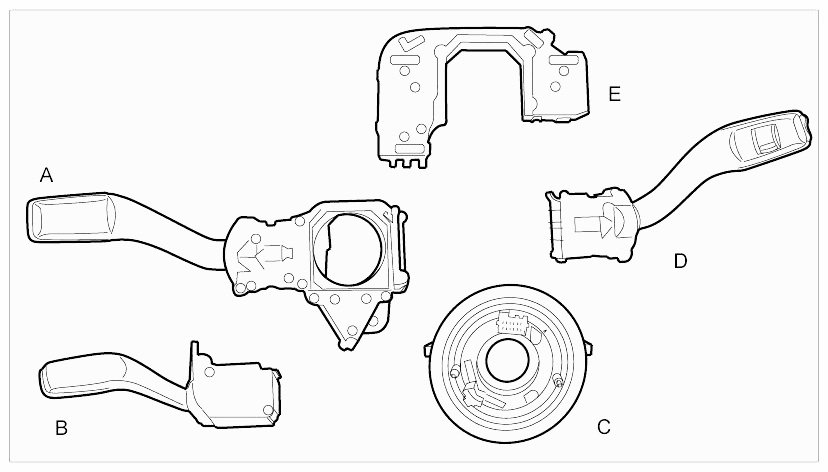

Fig 2: Identifying Direction Indicator, Cruise Control Switch, Switch For Wiper/Washer System And Electronic Unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Direction indicator switch
2. Cruise control switch
3. Contact unit for airbag (spiral spring)
4. Switch for wiper/washer system
5. Electronic unit
