Preliminary Work

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove plenum panel cover. → Removing cowl panel cover
  2. Using the bonnet stay 97040  the bonnet can be opened wider for better accessibility of the plenum panel. To do this, remove the front gas spring and mount the bonnet stay. → Removing cowl panel cover
  3. Remove the DME control module. → Removing DME control unit

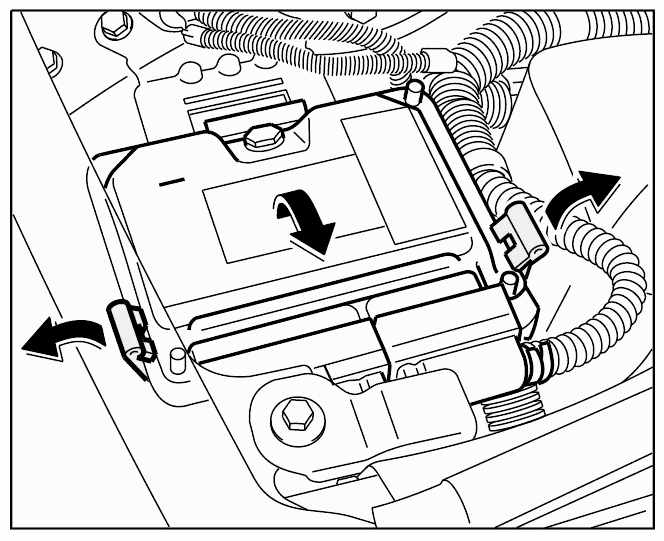

    Fig 1: Removing DME Control Module
    G09419464Courtesy of PORSCHE CARS NORTH AMERICA, INC.
