Removing Pressure Line In Vehicle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refrigerant

Danger of freezing

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

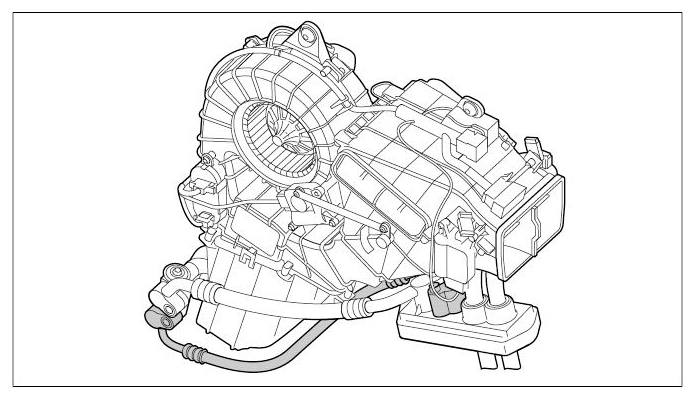

Fig 1: Overview Of Pressure Line In Vehicle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove refrigerant by suction. → Draining and filling in refrigerant
Raise the auxiliary air-conditioning unit and unscrew both fastening screws -1- .

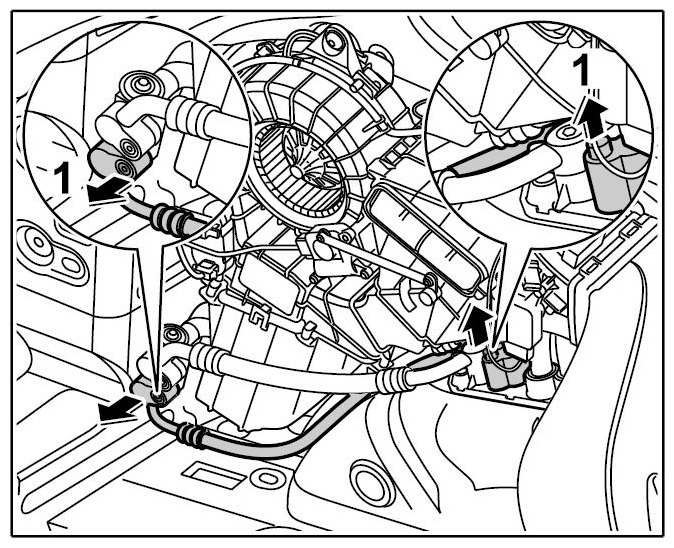

Fig 2: Unscrewing Fastening Screws And Removing Pressure Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the pressure line -arrows- and seal with plugs.
