Removing Blower Regulator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Remove the ignition key and switch off load before disconnecting or removing load.

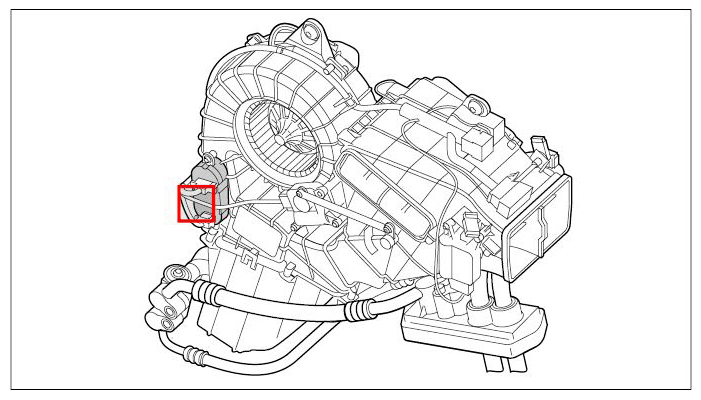

Fig 1: Overview Of Fan Control

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

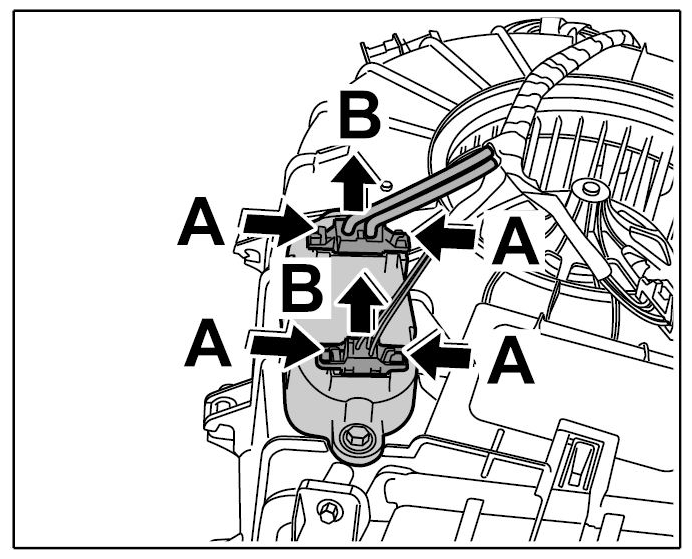

Release the two connectors -arrows A- and pull them off -arrows B- .

Fig 2: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

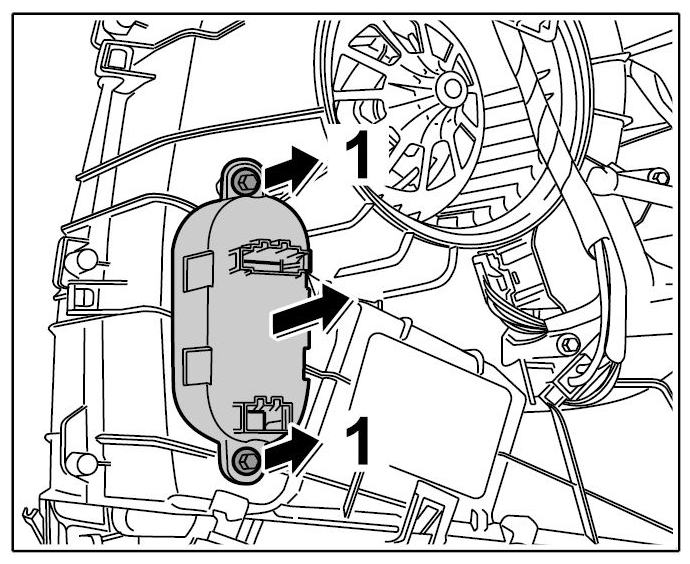

Unscrew the two fastening screws -1- and remove the fan control -arrow- .

Fig 3: Removing Fan Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
