Installing Blower Regulator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

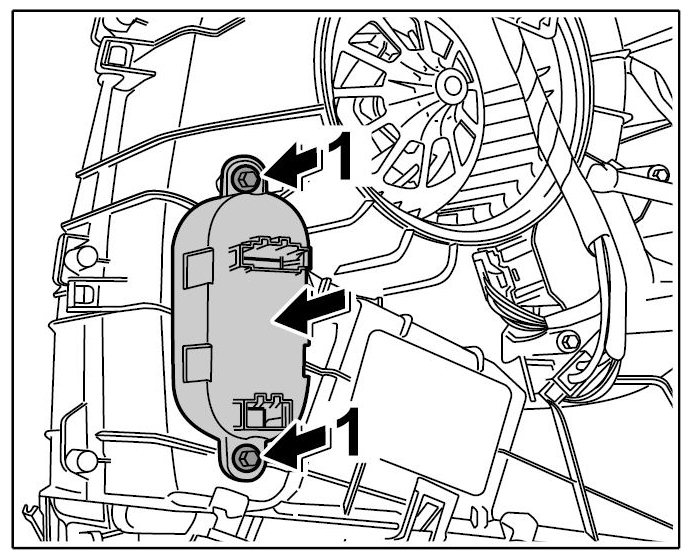

Insert the fan control einstecken -Arrow- and screw down with the fastening screws -1- . → Tightening torque: 1.0 ft lbs.

Fig 1: Installing Fan Control
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

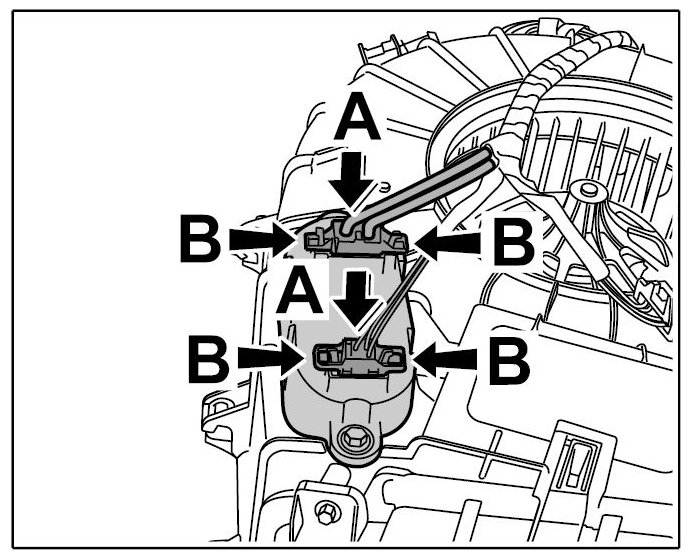

Push in both connectors -Arrows A- until the locking tabs -Arrows B- are felt to engage.

Fig 2: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
