Installing The Rear Vehicle Floor Suction Line

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

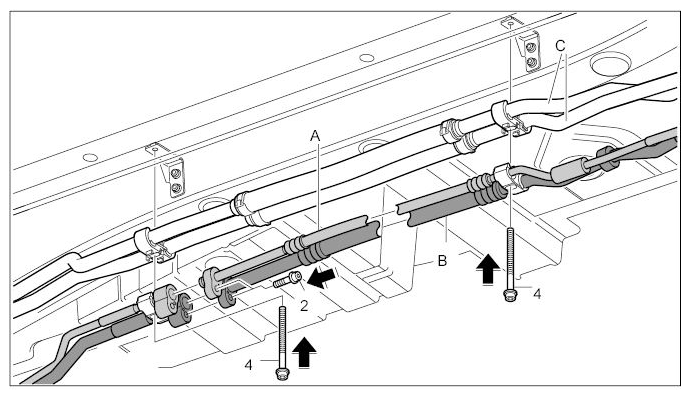

Fig 1: Installing Refrigerant Lines
G09414806Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Remove the plugs for the refrigerant lines -A-  and -B-  , check the O-rings of the refrigerant lines and replace if in doubt.
  2. Clip in the refrigerant lines into the retaining clips and coat the O-rings with refrigerant oil. Slide in lines and tighten using both fastening screws -2-  . Tightening torque: 9 ft lbs.
  3. Push fastening screws -4-  through the retaining clips for the lines -A, B, C-  and tighten. → Tightening torque: 2.5 ft lbs.

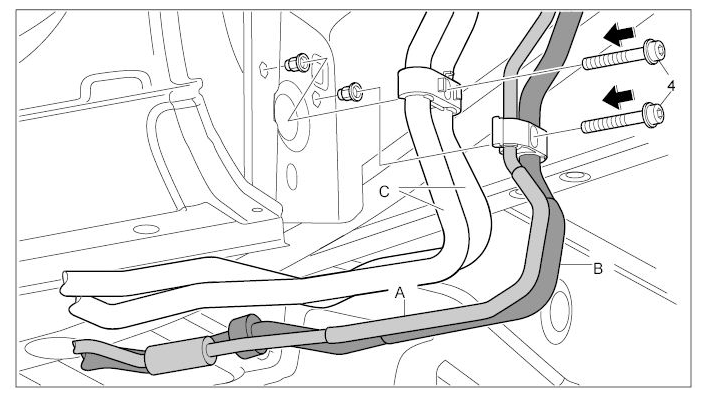

    Fig 2: Installing Fastening Screws
    G09414807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Position refrigerant lines -A, B-  and coolant lines -C-  and tighten with fastening screws -4-  . → Tightening torque: 2.5 ft lbs.

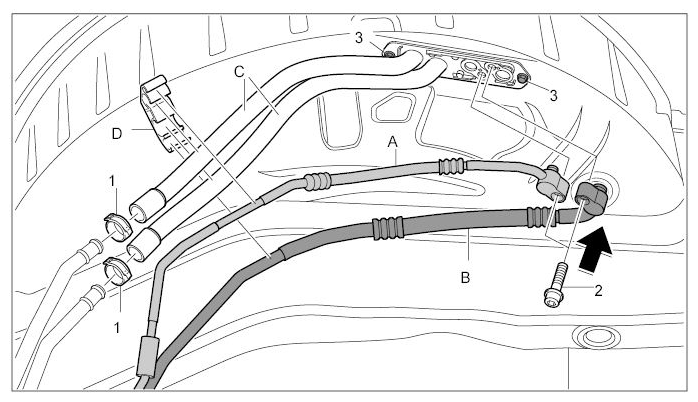

    Fig 3: Installing Refrigerant Lines Fastening Screws
    G09414808Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove the plugs for the refrigerant lines -A-  and -B-  , check the O-rings of the refrigerant lines and replace if in doubt.
  6. Clip refrigerant lines into the retaining clips -D-  and coat the O-rings with refrigerant oil. Slide in lines -A, B-  and tighten using both fastening screws -2-  . → Tightening torque: 9 ft lbs.
