Removing Center Console Vent

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Slide in the disassembly tool, universal NR.21 so that, when levering out, it rests on the vent -2- and not on the cover -1- .

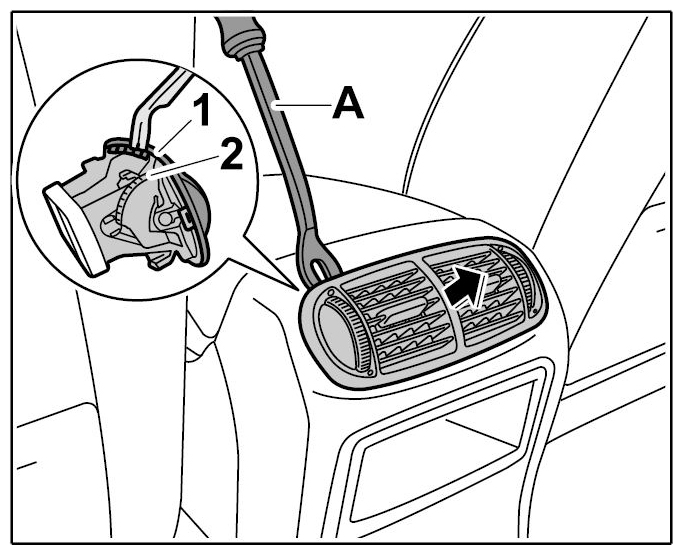

Fig 1: Removing Center Console Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

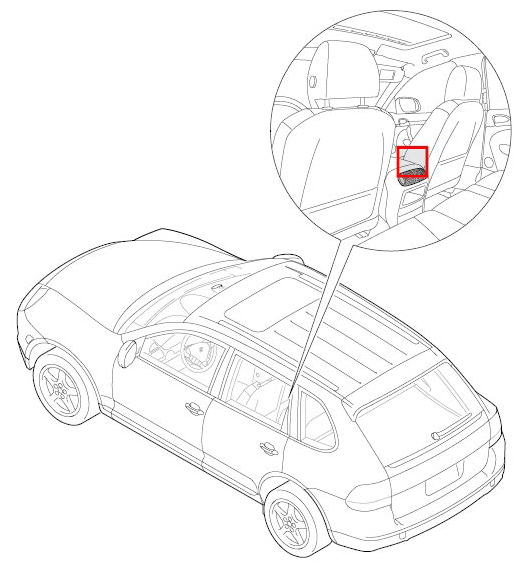

Fig 2: Overview Of Centre Console Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lever out the vent all the way around with the disassembly tool, universal Nr.21 and remove it.
