Removing Expansion Valve

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Refrigerant

Danger of freezing

→ Avoid contact with refrigerant.

→ Wear personal protective gear.

→ Observe the safety regulations for working on air-conditioned vehicles and dealing with refrigerant.

→ Observe the safety regulations for extraction and filling systems.

→ Observe the instructions for repairing air conditioning systems and storing spare parts.

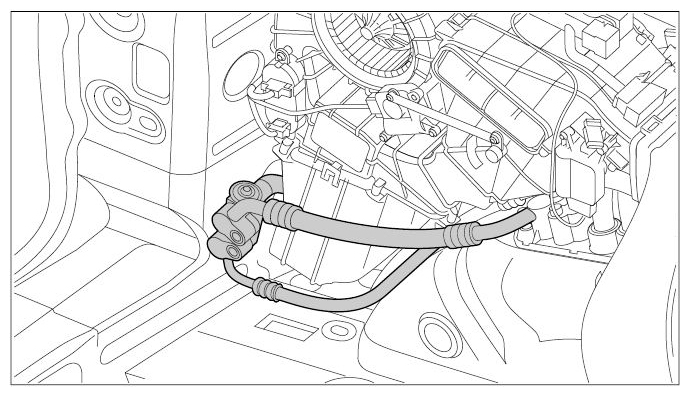

Fig 1: Overview Of Expansion Valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove refrigerant by suction. → Draining and filling in refrigerant
Undo the two fastening screws -1- for the expansion valve refrigerant lines.

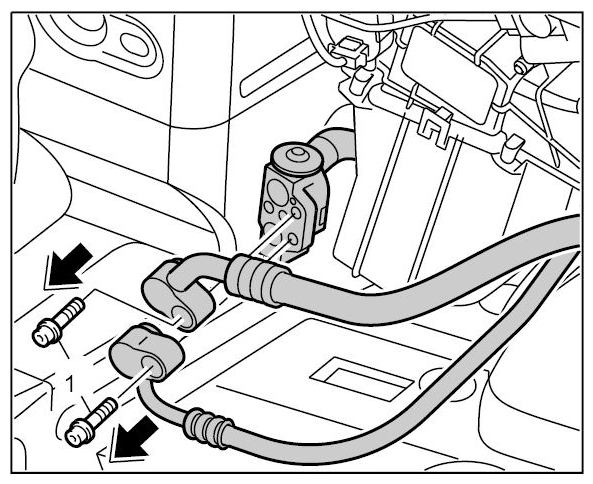

Fig 2: Undo Fastening Screws For Refrigerant Lines
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull out refrigerant lines from expansion valve and close with plugs.
Undo the two fastening screws for the expansion valve -2- and remove expansion valve.

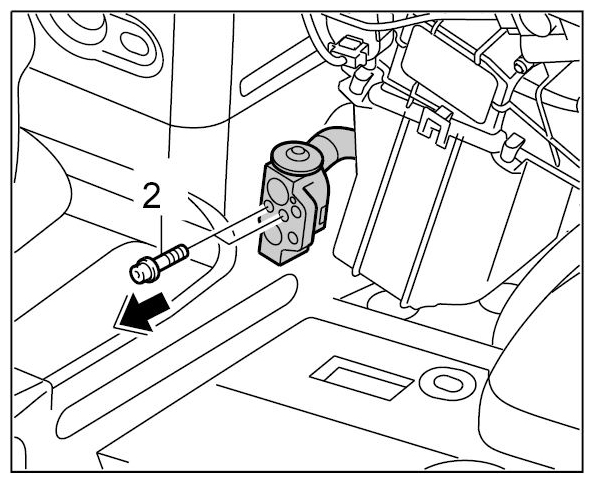

Fig 3: Removing Expansion Valve
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
