Removing Blower Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

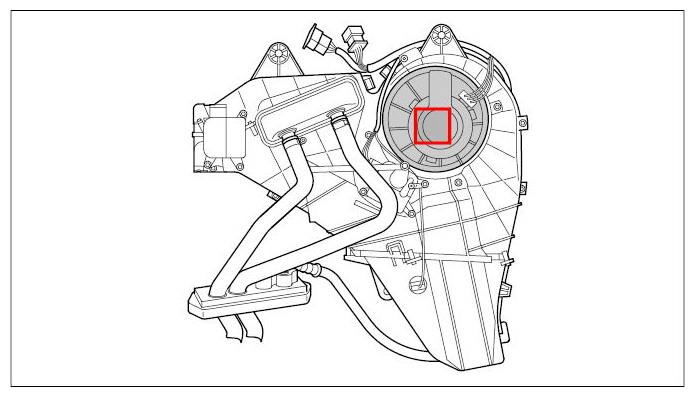

Fig 1: Overview Of Blower Motor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

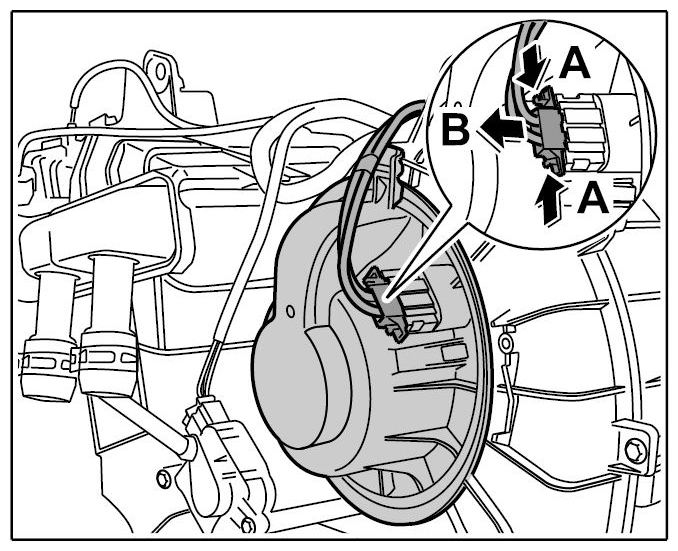

Release the plug -arrows A- and pull off -arrow B- .

Fig 2: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

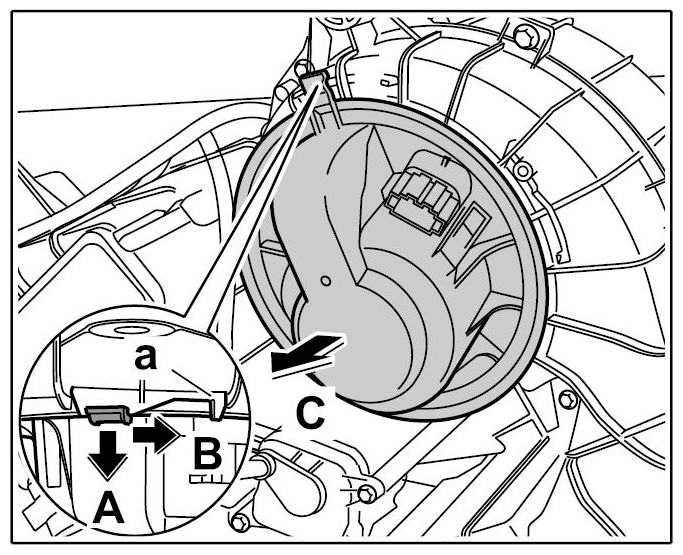

Release the locking tab -arrow A- and twist the blower motor up to the stop -a- -arrow B- .

Fig 3: Releasing Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take out blower motor -arrow C- .
