Installing Blower Motor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

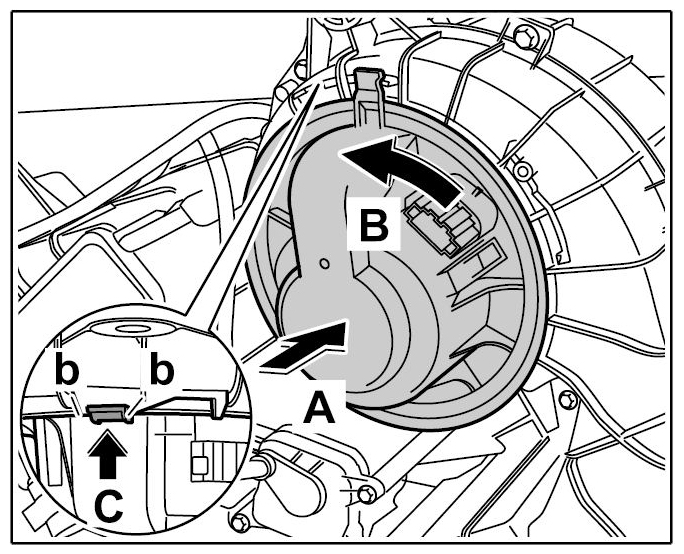

Insert the blower motor -arrow A- and twist to the left -arrow B- , until the locking hook can be felt to engage in the twist lock -b- -arrow C- .

Fig 1: Installing Blower Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

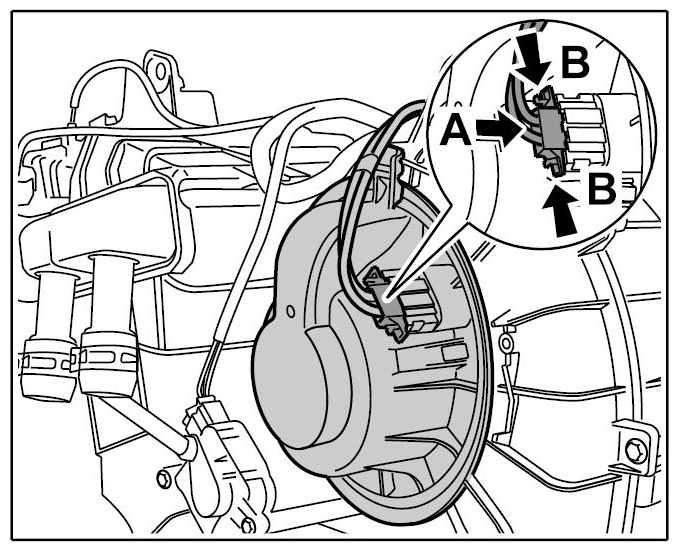

Insert the plug -arrow A- until the locking tabs -arrows B- are felt to engage.

Fig 2: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
