Removing Evaporator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

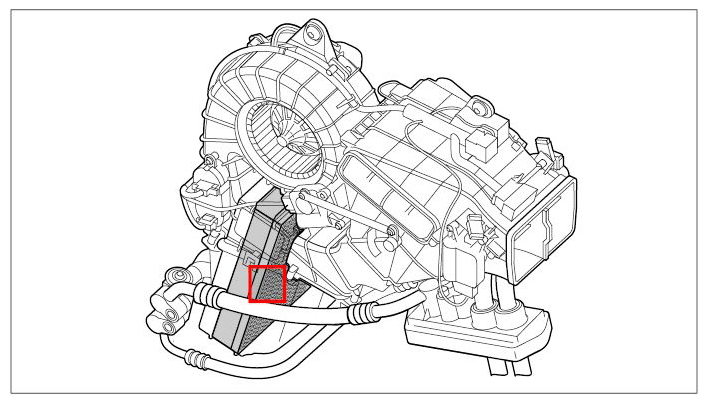

Fig 1: Overview Of Evaporator

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrew fastening screws -arrows 1- .

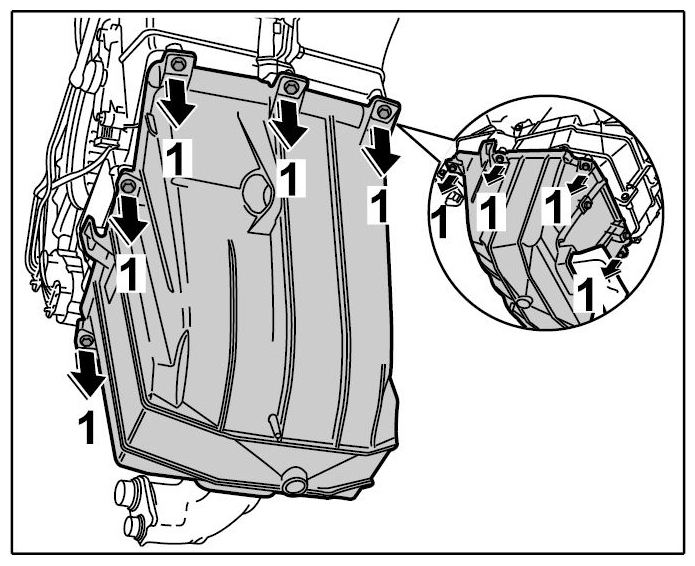

Fig 2: Unscrewing Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release both locking hooks -arrows A- and take out the bottom housing section with the evaporator -arrow B- .

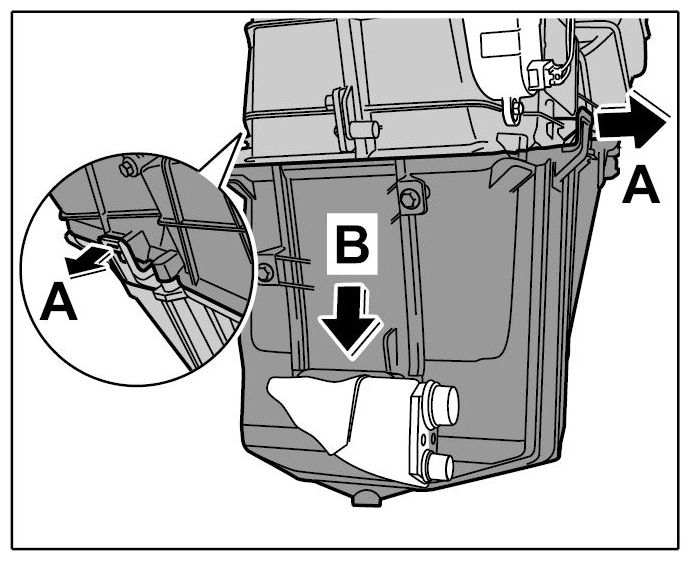

Fig 3: Removing Lower Housing Section With Evaporator
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening screws -arrows 2- and unscrew the cover -arrow B- .

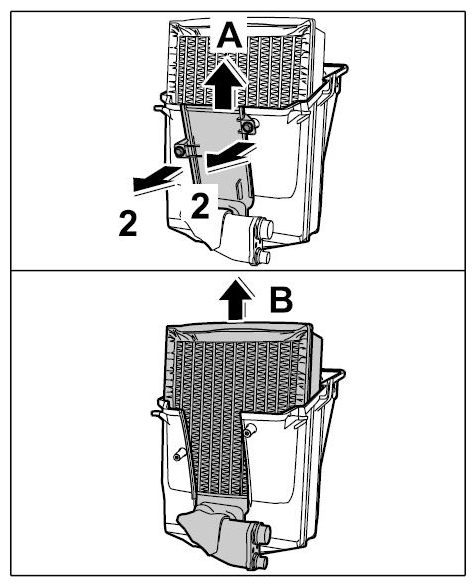

Fig 4: Releasing And Taking Out Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take the evaporator out of the lower housing section arrow -arrow B- .
