Installing Evaporator

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The seal positions the evaporator under a slight pre-load in the housing. To ensure the correct pre-load, a damaged seal must be replaced.

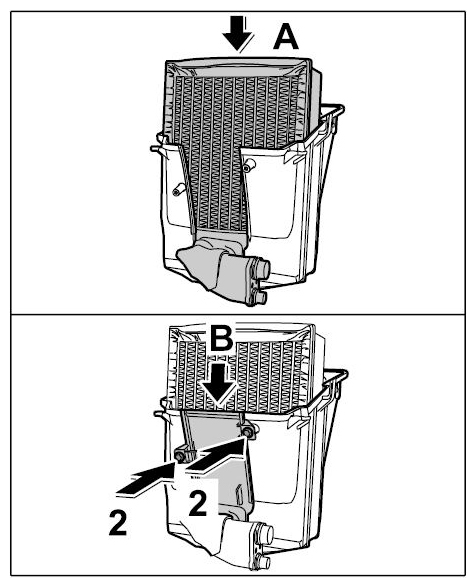

Insert evaporator into lower housing section -arrow A- .

Fig 1: Insert Evaporator Into Lower Housing Section And Fasten
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the cover -arrow B- and screw in the fastening screws -2- - do not screw them down!

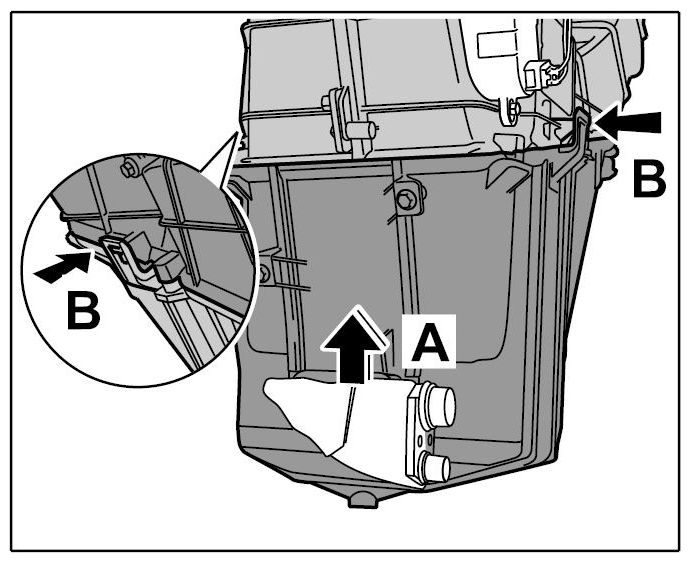

Slip the lower housing section onto the upper housing section -arrow A- until locking tabs -arrows B- are felt to engage.

Fig 2: Slipping Lower Housing Section Onto Upper Housing Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

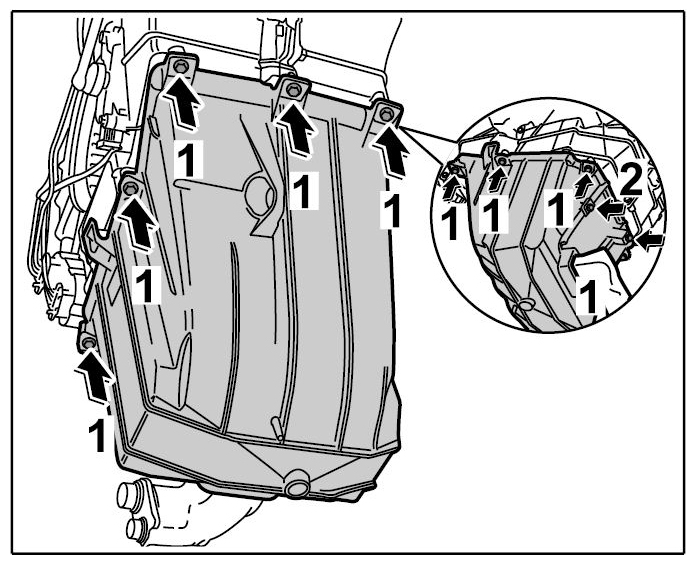

Screw on fastening screws -arrows 1- and tighten. → Tightening torque: 1 ft lbs.

Fig 3: Tightening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw down the cover with the fastening screws -2- . → Tightening torque: 1 ft lbs.
