Removing Control Unit For Auxiliary Air Conditioner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

The control unit for the auxiliary air conditioning system is located in the center console, back seat area.

Information

The ignition must be switched off and the ignition key removed before the control unit for the auxiliary air conditioning system can be removed.

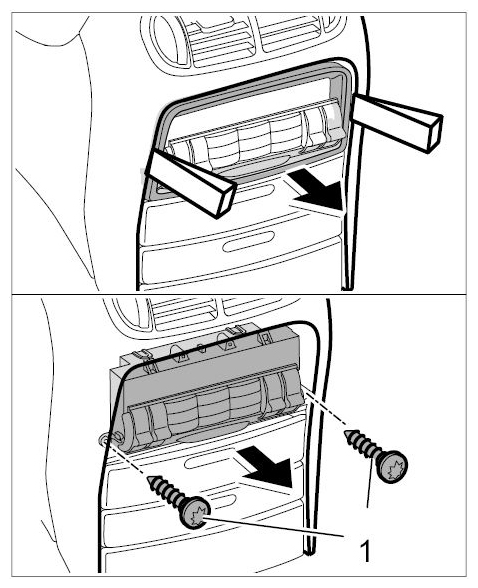

Use a plastic spatula to carefully unclip the covering frame, left and right.

Fig 1: Removing Control Module
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew both fastening screws -1- .

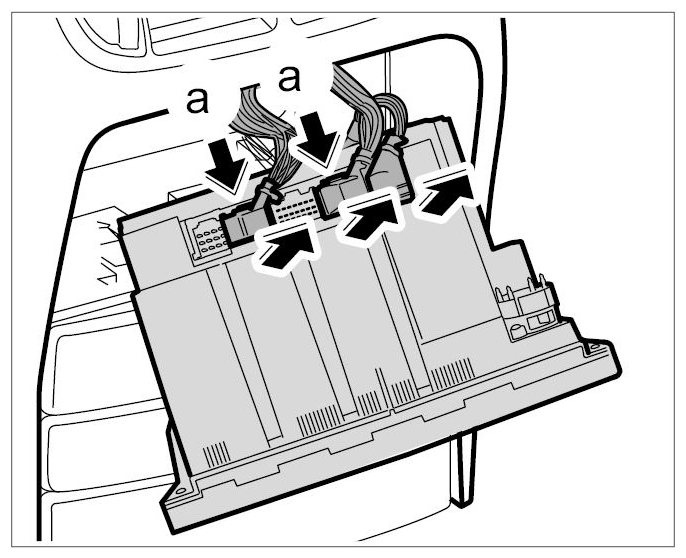

Press in latch of electrical plugs -a- and pull the plugs up and off.

Fig 2: Pulling Off Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
