Removing Auxiliary Air-Conditioning Air Guide

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Depending on vehicle equipment and on the required air guide, all interior components must be removed.
The removal and installation described provides information about routing and the connection or fastening points.

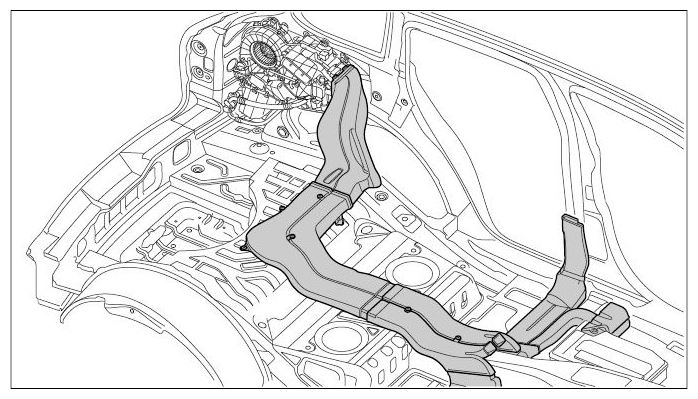

Fig 1: Overview Of Air Guide For Auxiliary Air-Conditioning
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

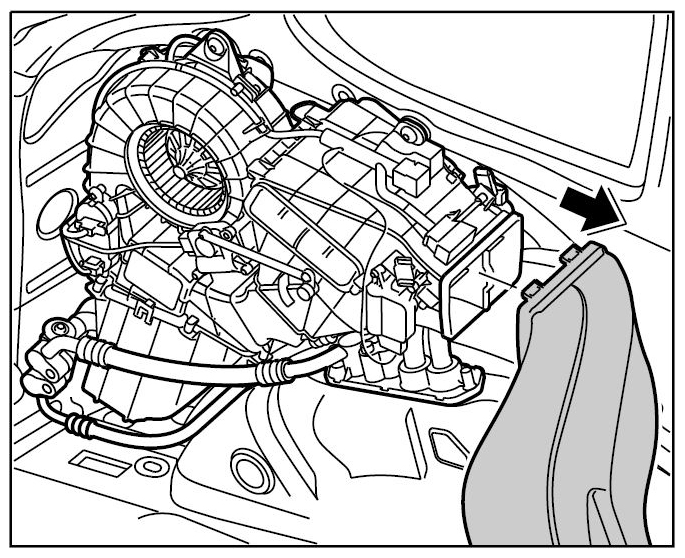

Press together the air duct from above and pull out of the air-conditioning unit.

Fig 2: Pulling Out Air Duct From Air-Conditioning Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

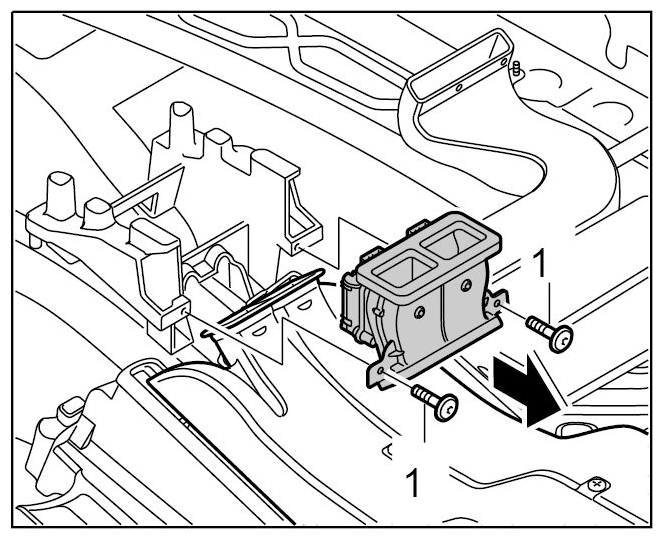

Unscrew fastening screws -1- and remove the vents -arrow- .

Fig 3: Removing Vent
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

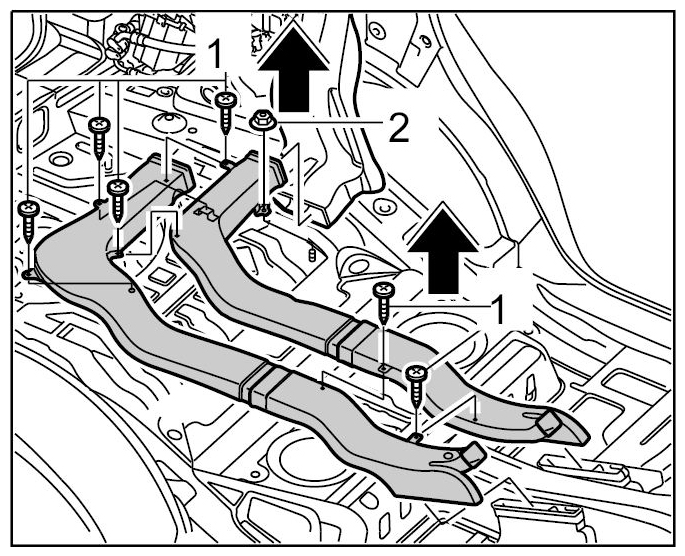

Unscrew the fastening screws -1- and the fastening nuts -2- .

Fig 4: Unscrewing Fastening Elements
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

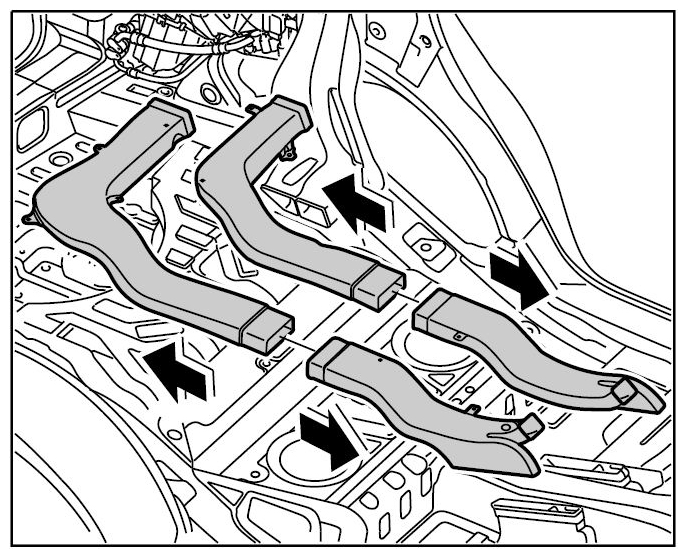

The air guides are plugged into each other and can simply be pulled apart.

Fig 5: Disconnecting Air Guides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

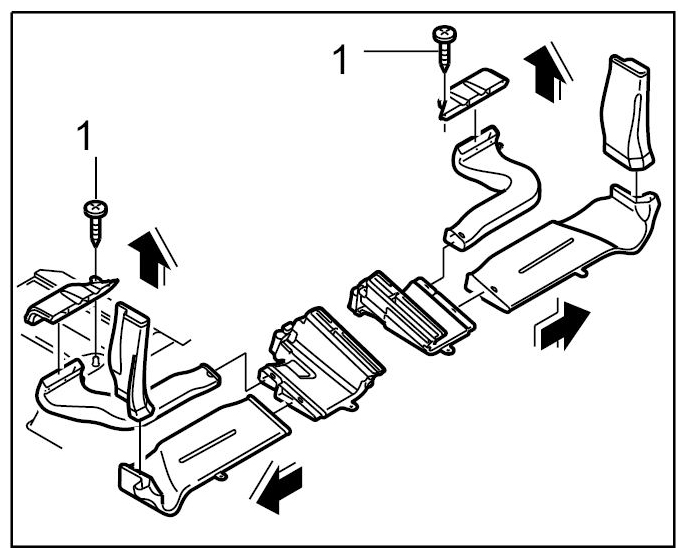

Unscrew the fastening screws -1- and pull apart the rear footwell vent air guides and the B-pillar.

Fig 6: Disconnecting Rear Footwell Vent Air Guides And B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
