Installing Auxiliary Air-Conditioning Air Guide

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

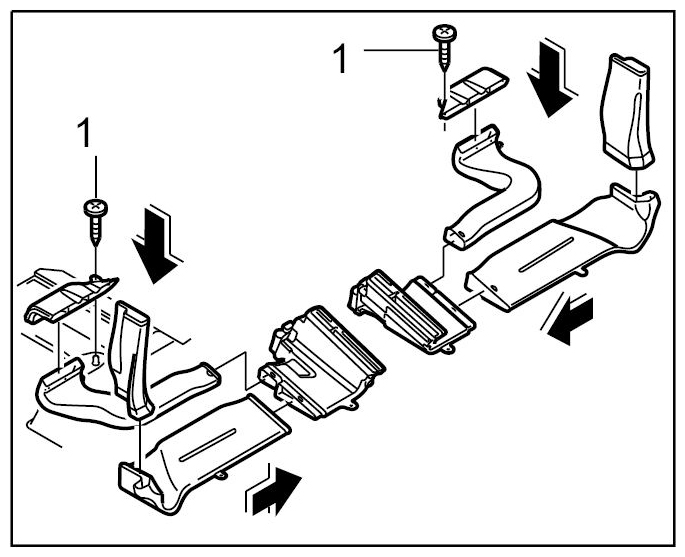

Plug together the rear footwell vent air guides and the B-pillar and screw down with the fastening screws -1- . → Tightening torque: 1 ft lbs.

Fig 1: Plugging Together Rear Footwell Vent Air Guides And B-Pillar
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

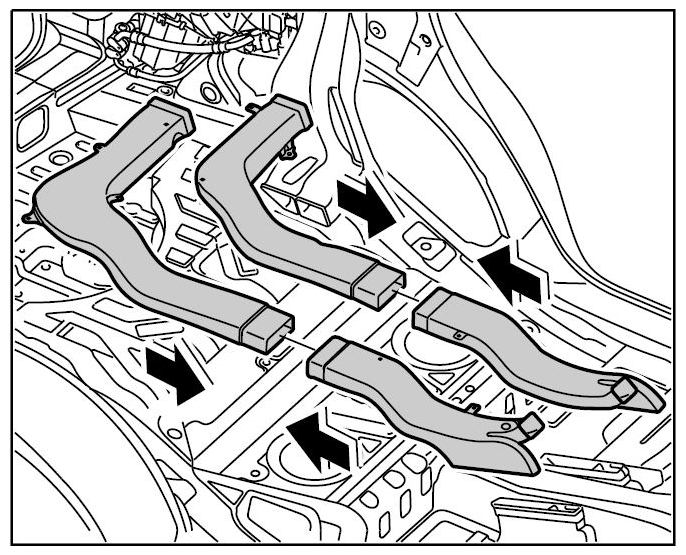

Plug the air guides together.

Fig 2: Plugging Air Guides Together
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

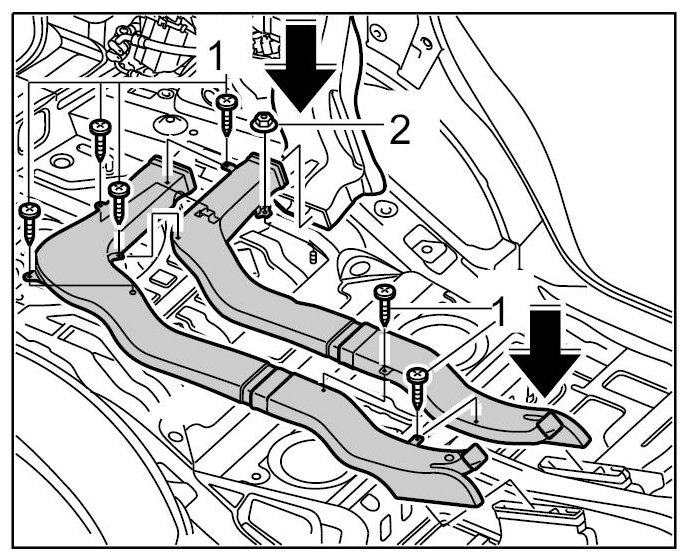

Screw down the air guides using the fastening screws -1- and the fastening nuts -2- . → Tightening torque: 1 ft lbs. → Tightening torque: 1 ft lbs.

Fig 3: Screwing Down Air Guides
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

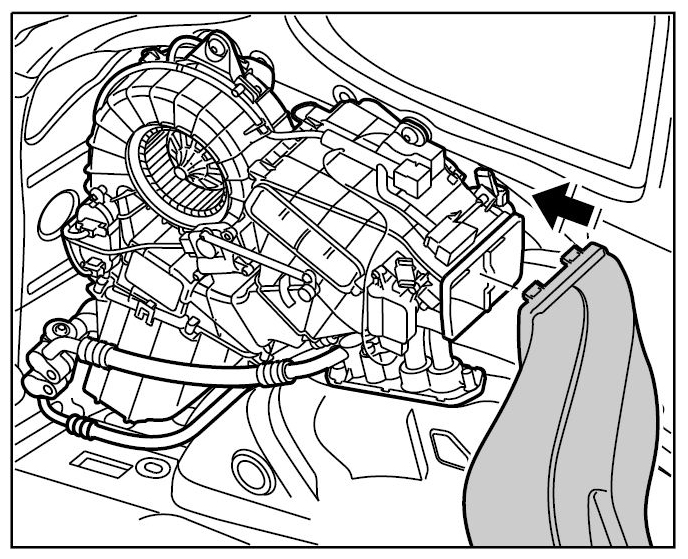

Push the air duct into the auxiliary air-conditioning unit until the air duct engages.

Fig 4: Sliding Air Duct Into Auxiliary Air-Conditioning Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

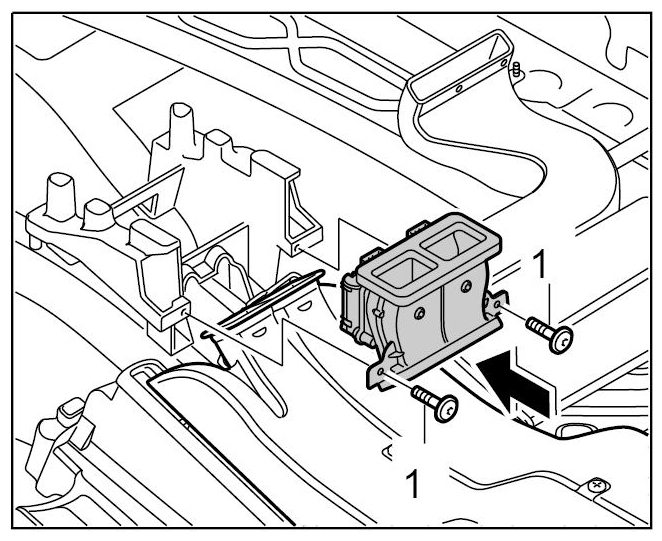

Place on the centre console vent and screw down with the fastening screws -1- . → Tightening torque: 1 ft lbs.

Fig 5: Positioning Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
