Removing Heat Exchanger

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

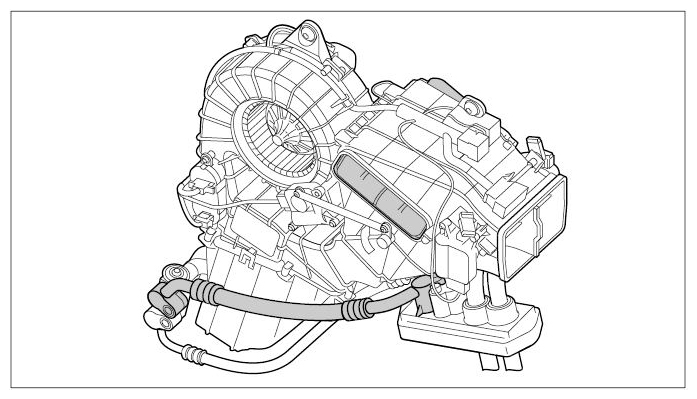

Fig 1: Overview Of Heat Exchanger

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Press together the air duct from above and pull out of the air-conditioning unit -arrow- .

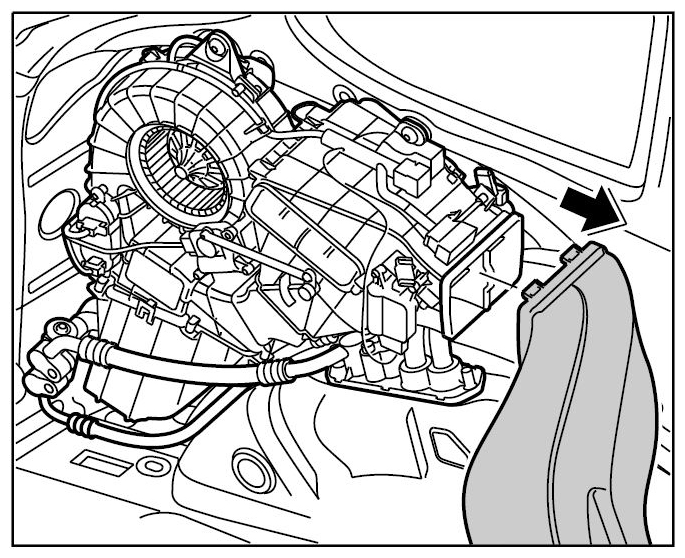

Fig 2: Pulling Out Air Duct From Air-Conditioning Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew the fastening screws -1- and tilt the auxiliary air-conditioning unit inwards on the top side.

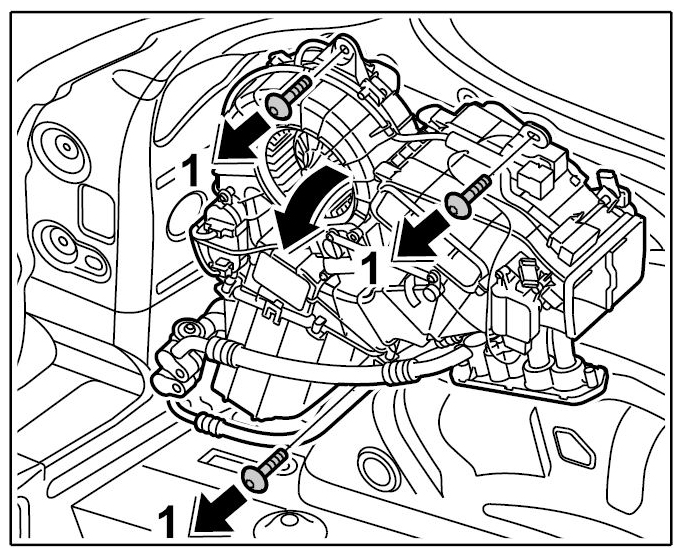

Fig 3: Tilting Auxiliary Air-Conditioning Unit Inwards
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove both servo motors for air flow. → Removing Servo Motor

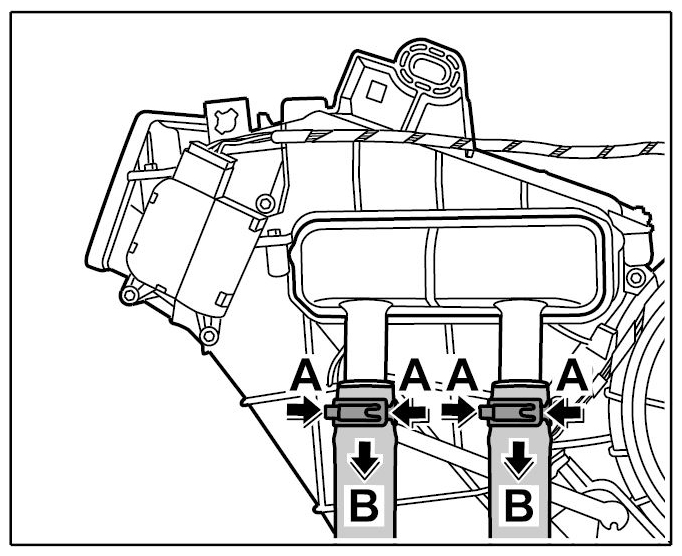

Press together the spring band clamps with the circlip pliers for spring band clamps, Cayenne hose connections 72-1 -arrows A- and pull off the coolant hoses from the heat exchanger -arrows B- .

Fig 4: Releasing Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -2- and open the upper housing section -arrow A- .

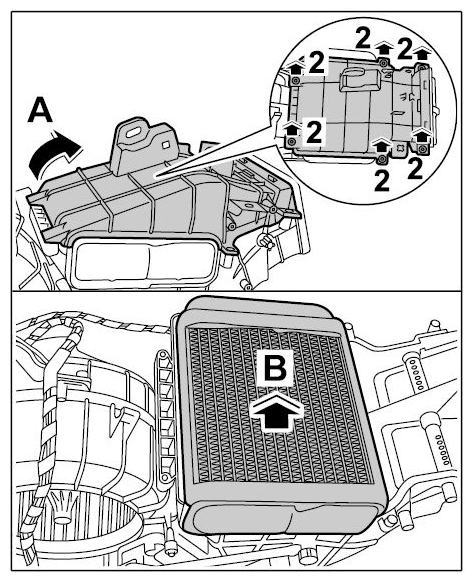

Fig 5: Removing Heat Exchanger
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Take out heat exchanger -arrow B- .
