Removing Servo Motor On Central Vents

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

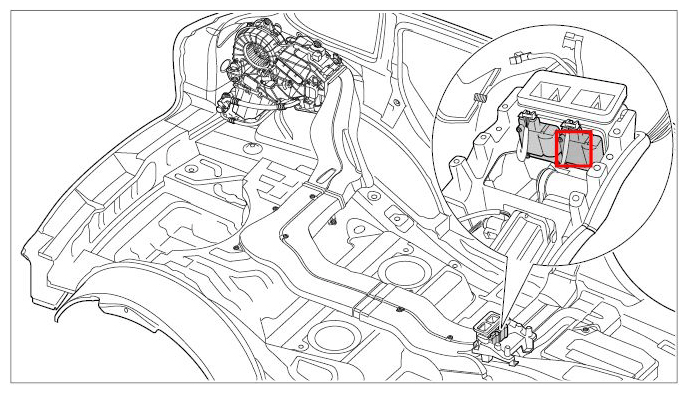

Fig 1: Overview Of Servo Motor Central Vents
G09414728Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release connector -Arrow A-  and pull off -Arrow B-  .

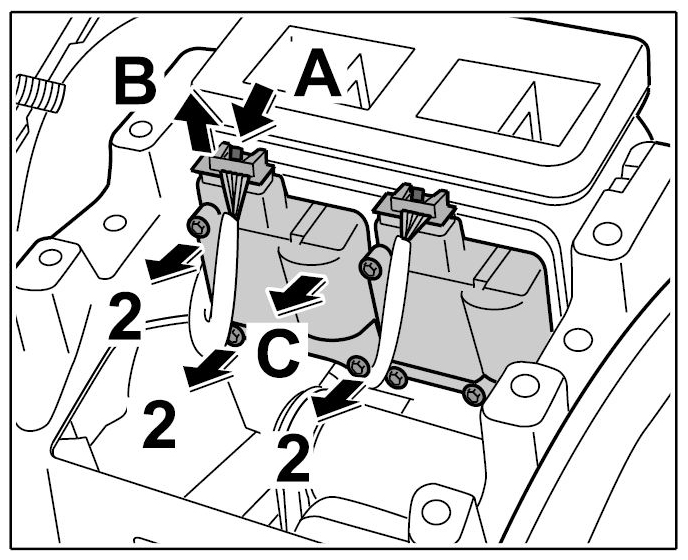

    Fig 2: Pulling Off Servo Motor Connector
    G09414729Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Undo the fastening screws -Arrows 2-  and remove the servo motor -Arrow C-  .
