Removing Servo Motor On Additional Air Conditioner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

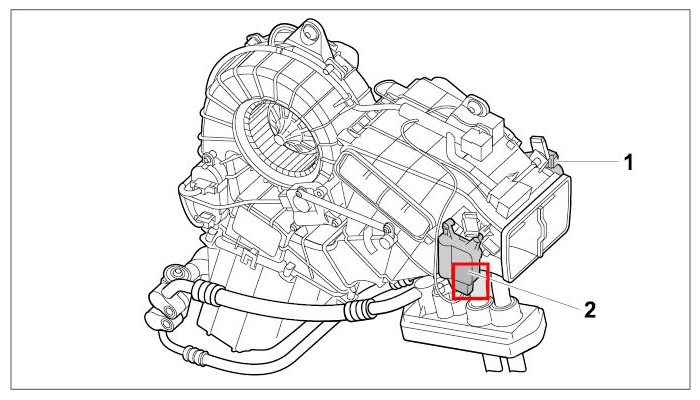

Fig 1: Overview Of Servo Motor On Additional Air Conditioner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo motor for air flow, left side
Servo motor for air flow, right side

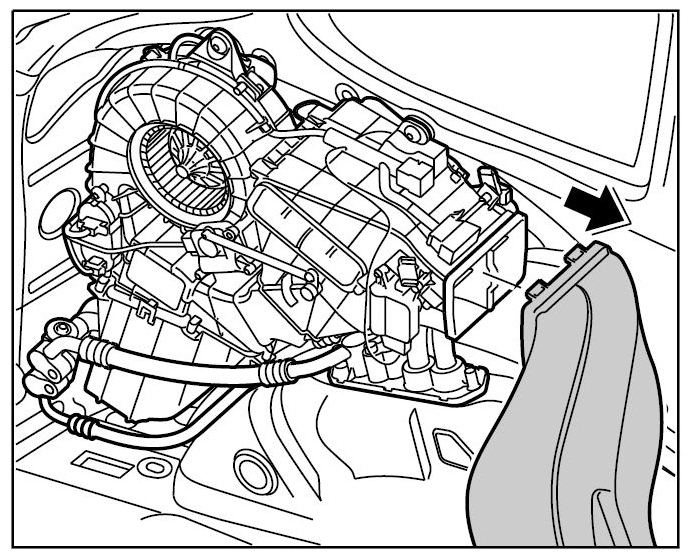

Compress air duct from above and pull it out of the air conditioner -arrow- .

Fig 2: Removing Air Duct From Air Conditioner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Only when removing the left servo motor

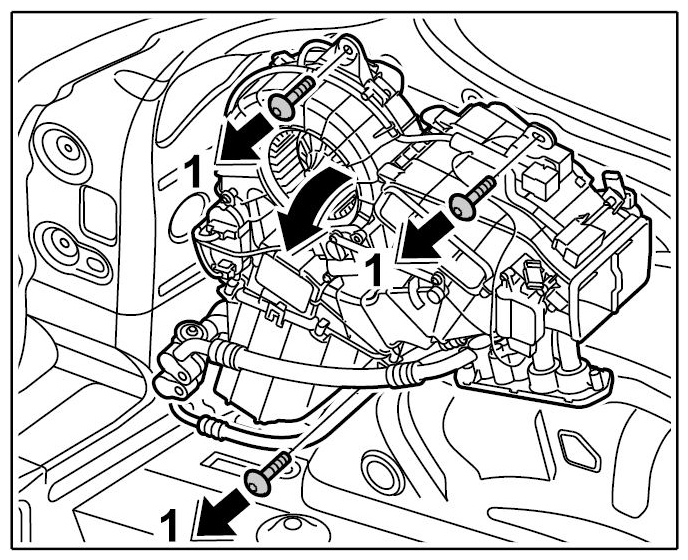

Unscrew the fastening screws -1- and tilt the additional air conditioner inwards at the top side.

Fig 3: Loosening Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

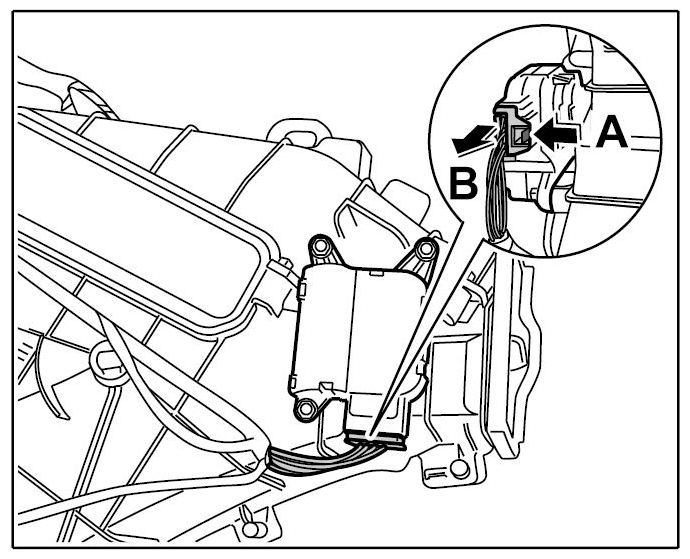

Release connector -Arrow A- and pull off -Arrow B- .

Fig 4: Pulling Off Connector
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

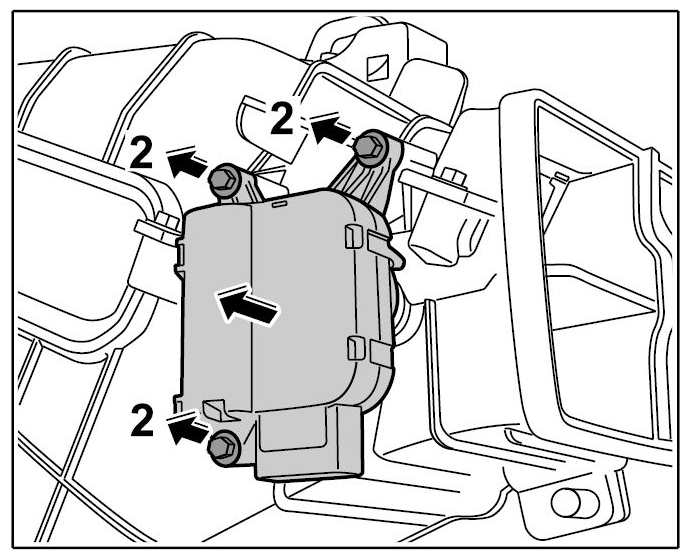

Unscrew the fastening screws -2- and pull the servo motor from the air flow flap -arrow- .

Fig 5: Removing From Air Flow Flap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
