Installing Servo Motor On Central Vents

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Push servo motor onto the air flap -Arrow A-  and turn to the fastening position.

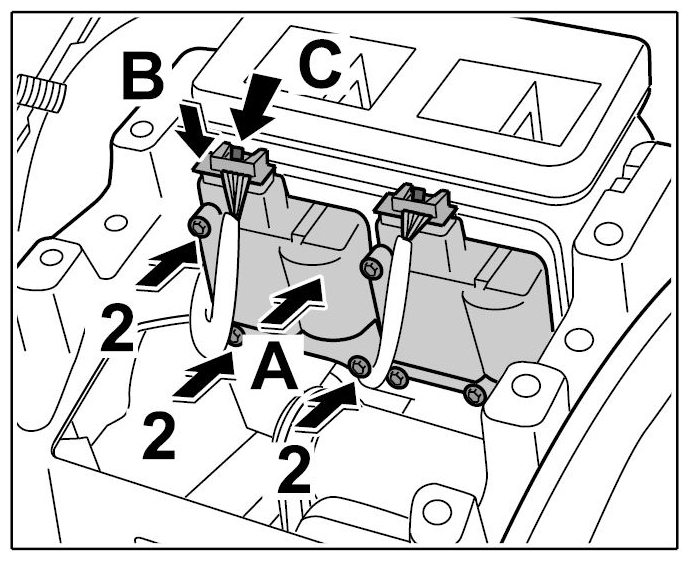

    Fig 1: Pushing Servo Motor Onto Air Flap And Fastening
    G09414736Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Screw down the servo motor with the fastening screws -Arrows 2-  . → Tightening torque: 1.0 ft lbs.
  3. Push on connector -Arrow B-  until the locking tab -C-  is felt to engage.
