Installing Servo Motor On Additional Air Conditioner

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

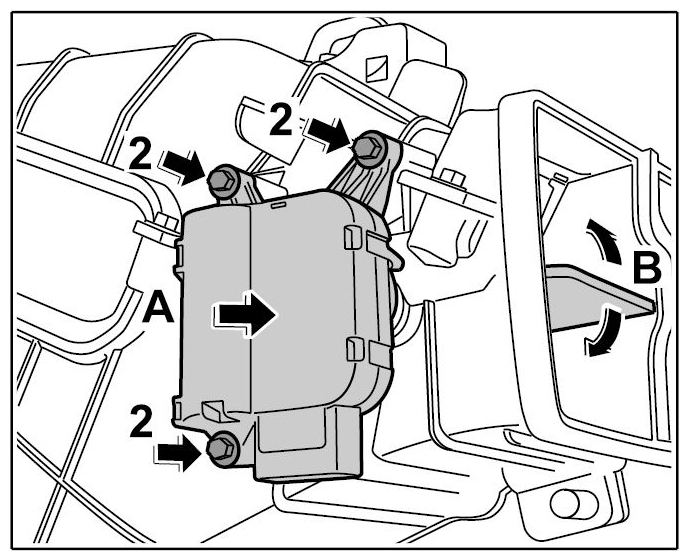

Push the servo motor onto the shaft of the air flow flap -arrow- .

Fig 1: Installing Servo Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Twist servo motor with air flap into the fastening position -Arrows B- and screw down with the fastening screws -Arrows 2- . → Tightening torque: 1.0 ft lbs.

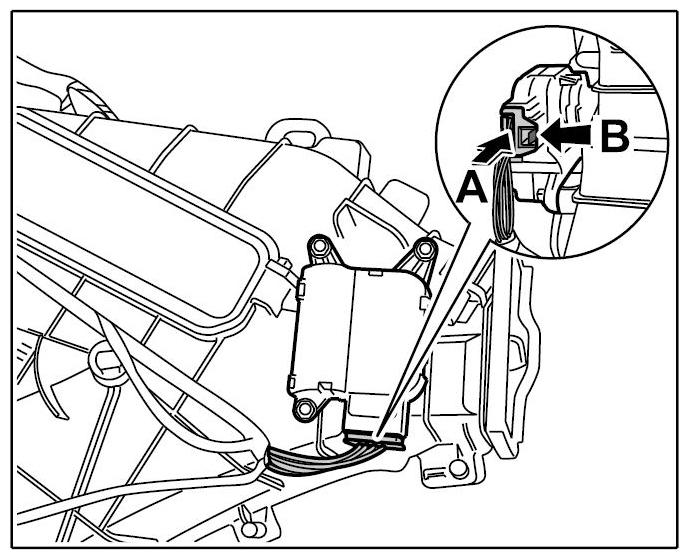

Push on connector -Arrow A- until the locking tab -B- is felt to engage.

Fig 2: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only when installing the left servo motor

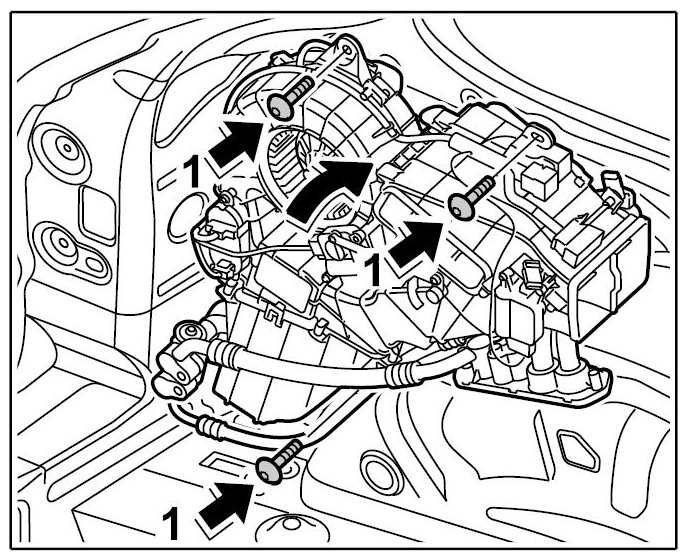

Tilt the additional air conditioner inwards at the top side -arrow- and screw down with the fastening screws -Arrows 1- . → Tightening torque: 6 ft lbs.

Fig 3: Tilting Additional Air Conditioner Inward
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

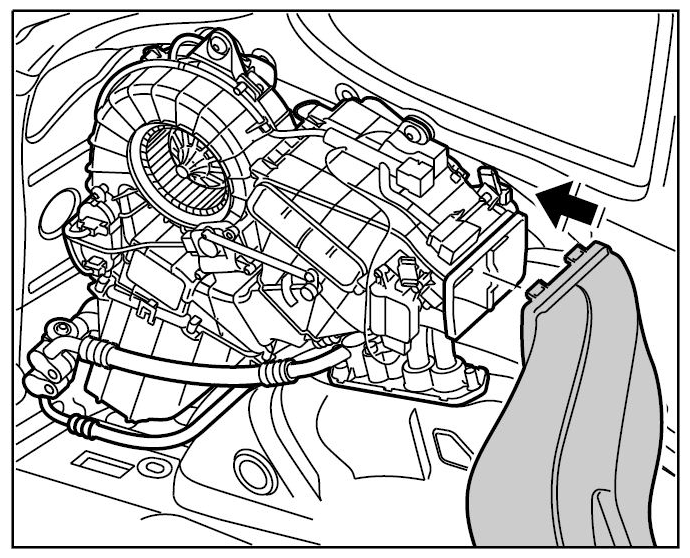

Push the air duct into the additional air conditioner -arrow- until the air duct is felt to engage.

Fig 4: Pushing Air Duct Into Additional Air Conditioner
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
