Installing Auxiliary Air-Conditioning Unit

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

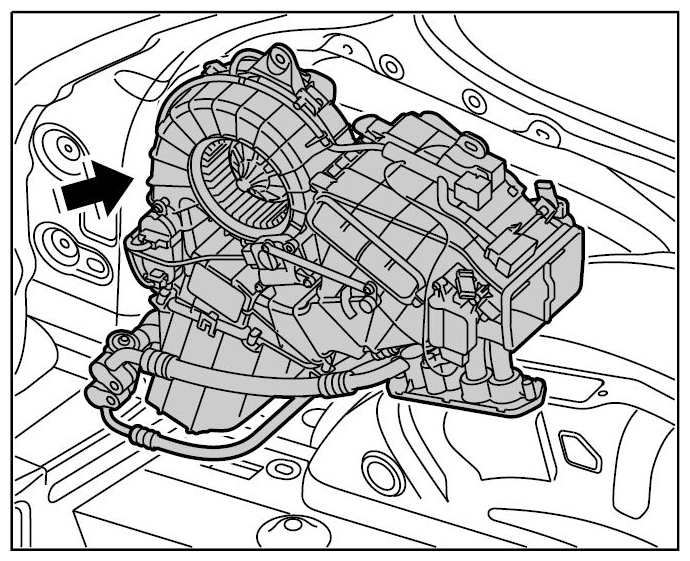

Position the auxiliary air-conditioning unit.

Fig 1: Running In Auxiliary Air-Conditioning Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

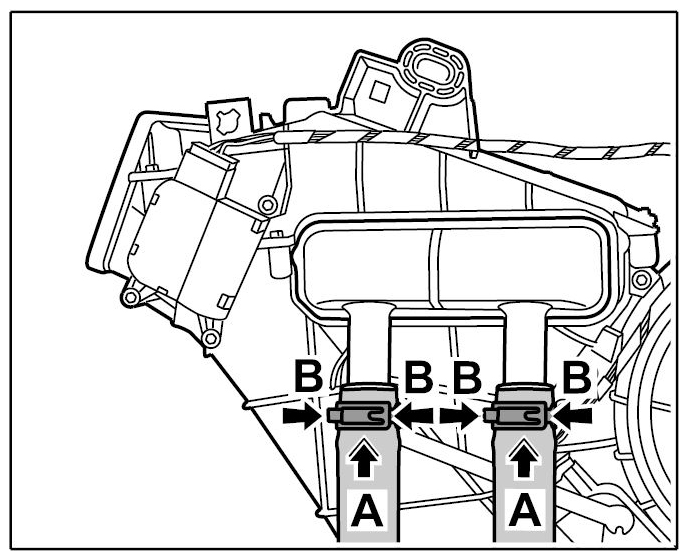

Push the coolant hoses onto the heat exchanger -arrows A- and attach with the spring-band clamps -B- .

Fig 2: Connecting Coolant Hoses
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

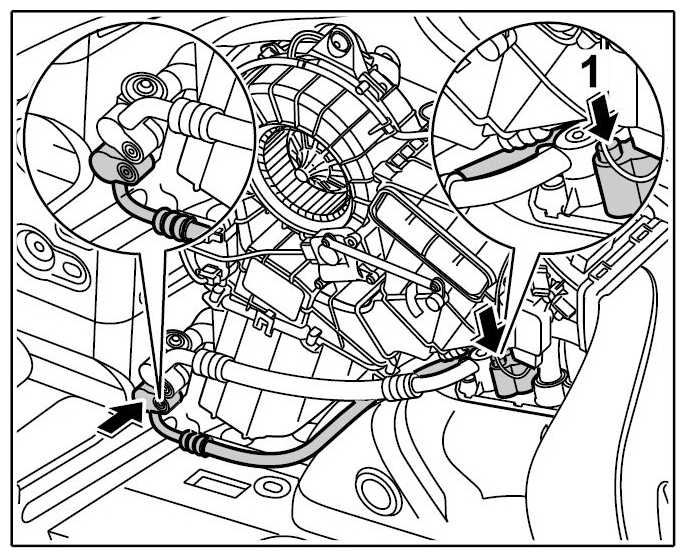

Remove the plugs on the suction line and pressure line, check the O-rings of the refrigerant lines, and replace if in doubt.
Place the suction line and pressure line on the connection -arrow- and screw down the fastening screw -1- . Tightening torque: 12 Nm (9.0 ft lbs.)

Fig 3: Installing Suction Line And Pressure Line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

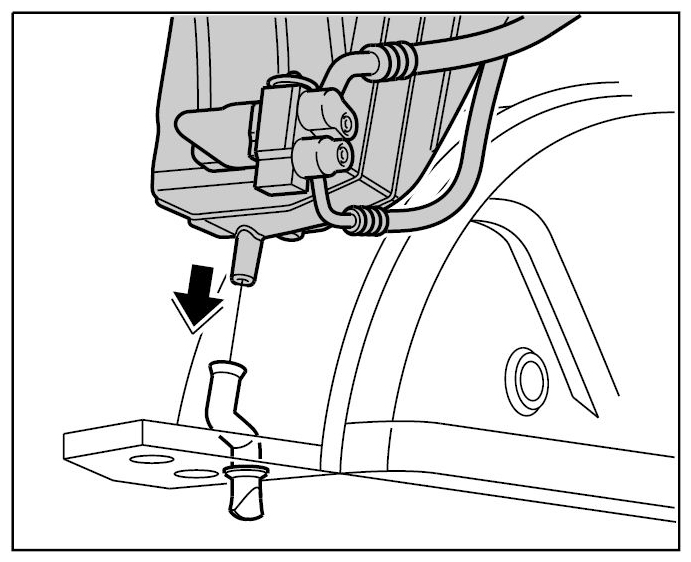

Hold auxiliary air-conditioning unit and connect water drain. Ensure that the water drain remains connected to the drain when fitting the auxiliary air-conditioning unit.

Fig 4: Holding Auxiliary Air-Conditioning Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

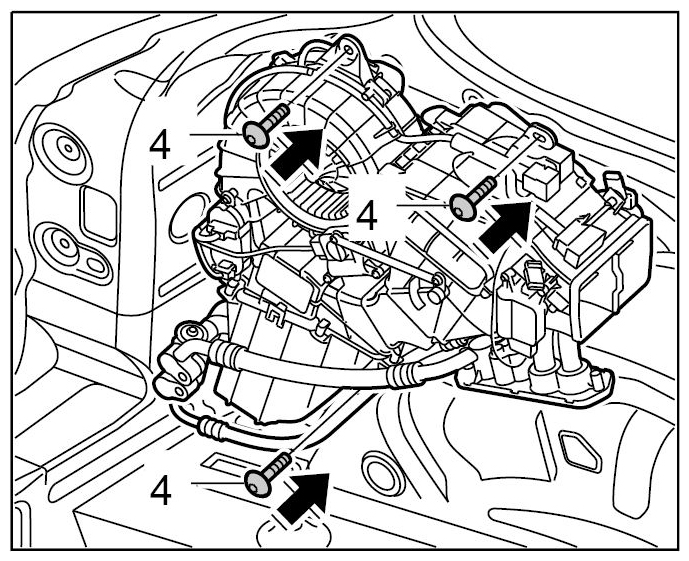

Press the auxiliary air-conditioning unit on the side wall and screw down the three fastening screws -4- . → Tightening torque: 8 Nm (6.0 ft lbs.)

Fig 5: Tightening Auxiliary Air-Conditioning Unit Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

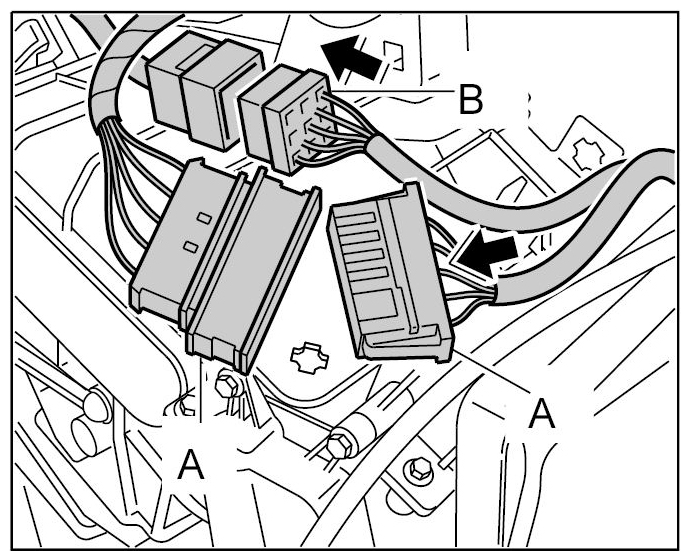

Push on the electrical plug -A- and -B- until plug is felt to engage.

Fig 6: Connecting Electrical Plug Connections
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

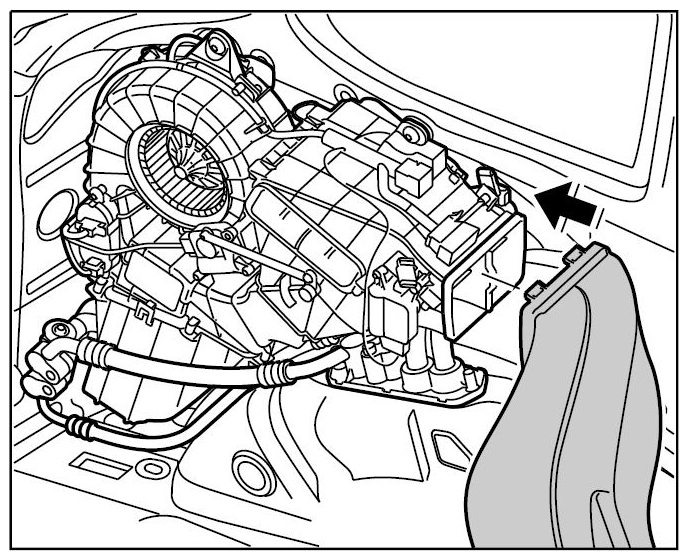

Push the air duct into the auxiliary air-conditioning unit until the air duct engages.

Fig 7: Sliding Air Duct Into Air-Conditioning Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
