Installing Front Handle

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

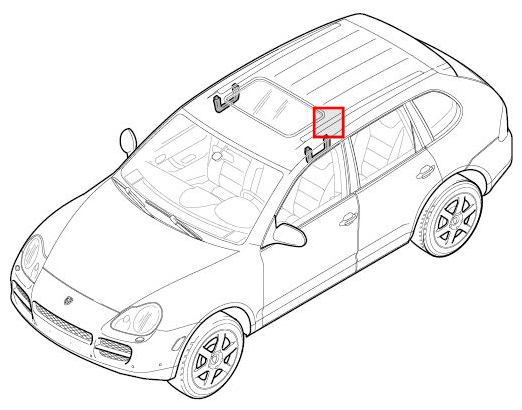

Fig 1: Identifying Front Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position handle -1- .

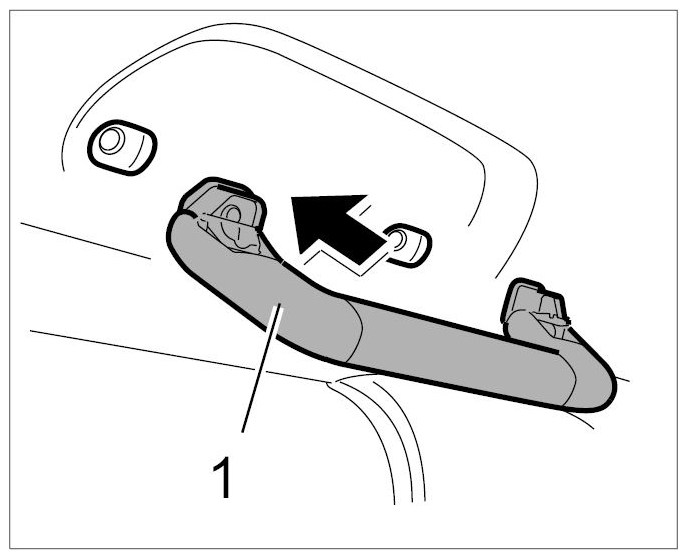

Fig 2: Positioning Front Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in and tighten fastening screws -3- . → Tightening torque: 3.5 ft lbs.

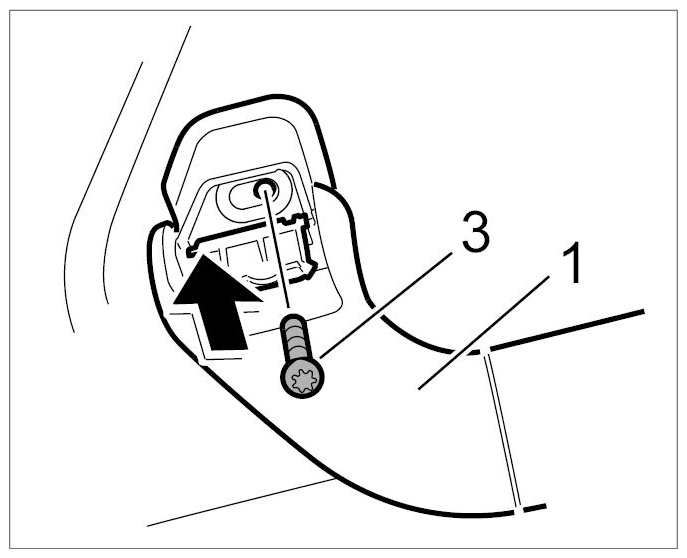

Fig 3: Installing Front Handle Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cover -2- .

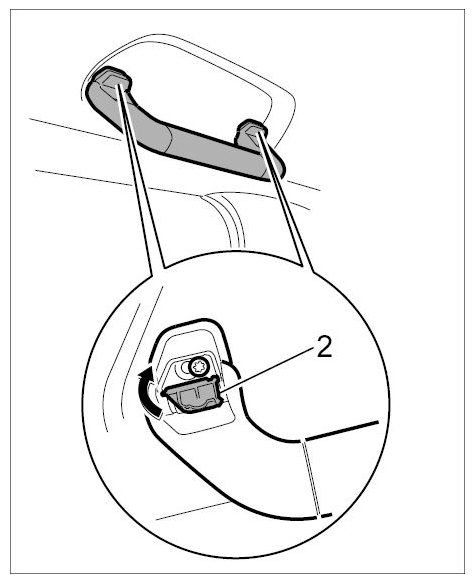

Fig 4: Installing Front Handle Cover Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

The handle must return itself to a normal position after it is released!
Fold in handle -1- .

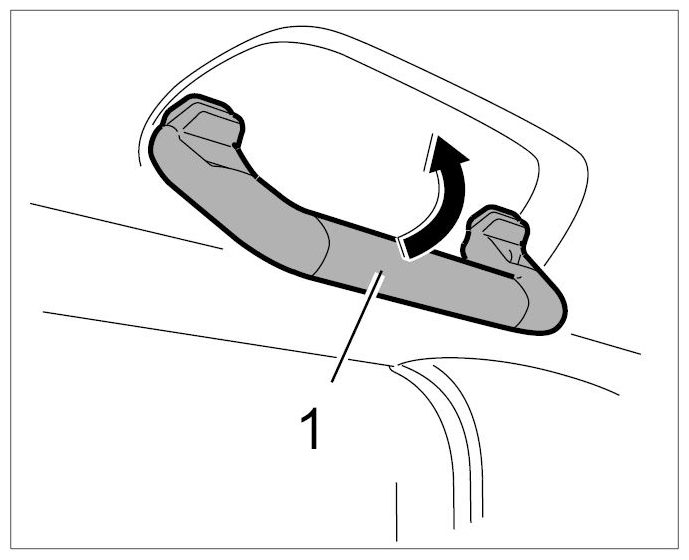

Fig 5: Folding Door Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
