Removing Plug Socket Cover

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew fastening screws -5- .

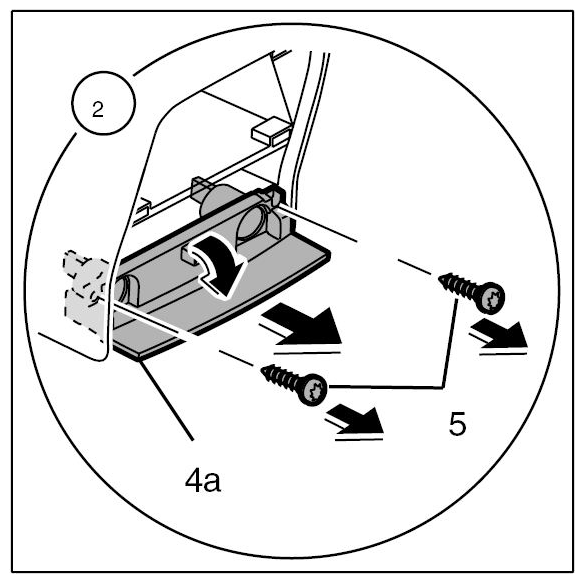

Fig 1: Removing Plug Socket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip and remove plug socket or cigarette lighter -4a- from the centre console.
Disconnect plug connections.
1. 3.1. Press in the locking lug on the connectors -6- (-arrow A- ).

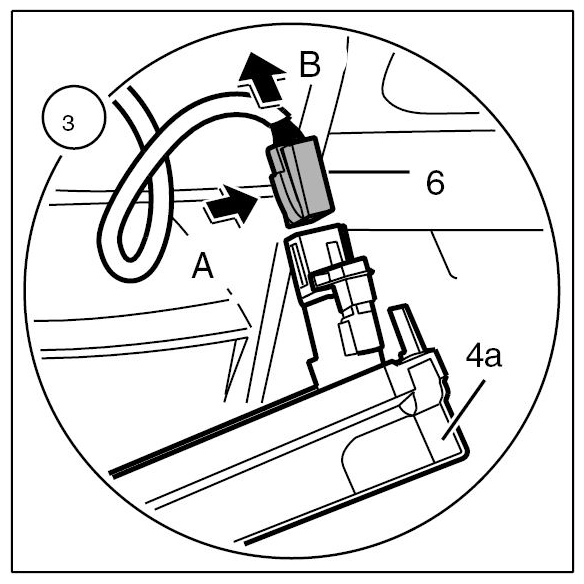

  Fig 2: Removing Plug Socket Or Cigarette Lighter From Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Pull off connectors -6- (-arrow B- ).

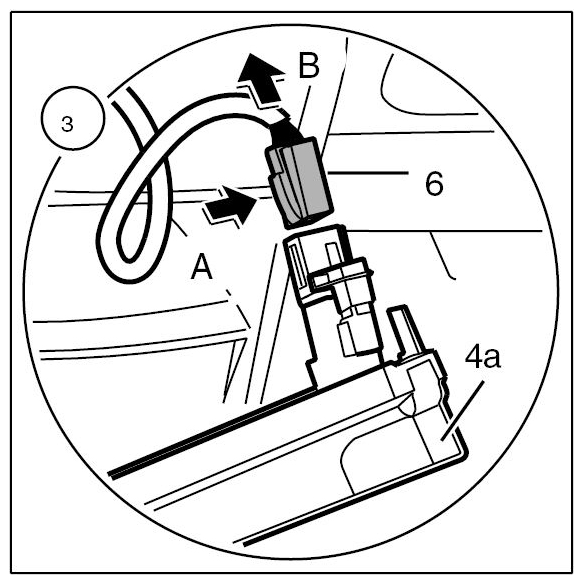

  Fig 3: Pulling Off Connectors
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
