Removing Locking Element

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

Place protective jaws or cloths on the vice to protect the cover from damage.

  1. Place the cover on a vice.
  2. Position a screwdriver on the locking element from behind. Unclip the locking element by giving the screwdriver a quick, strong tap.

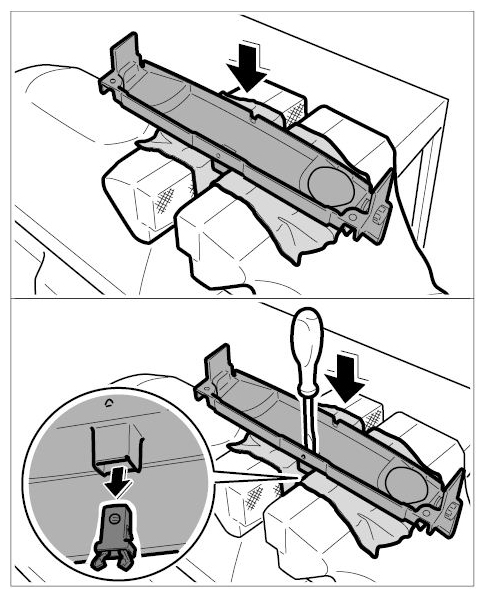

    Fig 1: Removing Locking Element
    G09412716Courtesy of PORSCHE CARS NORTH AMERICA, INC.
