Installing Plug Socket Cover

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

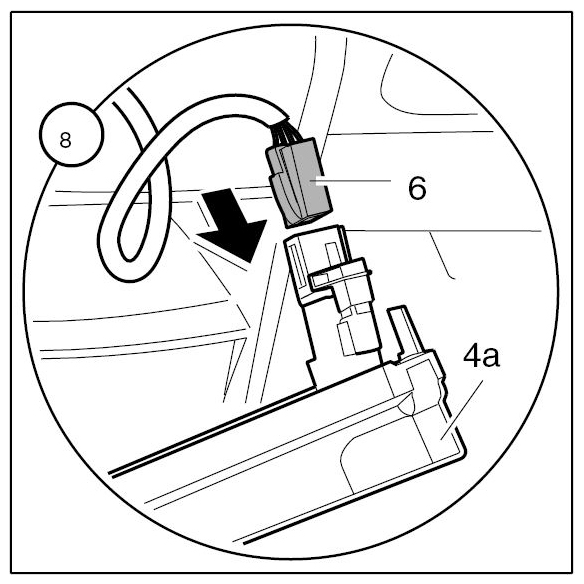

Plug in connectors -6- .

Fig 1: Plugging In Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

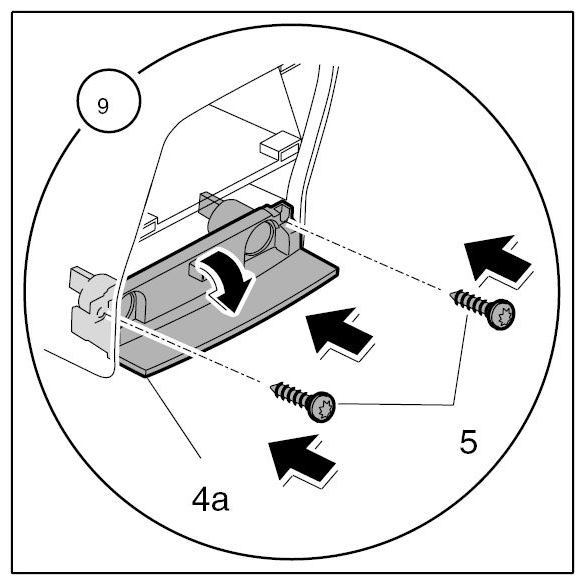

Clip plug socket or cigarette lighter -4- into the centre console. Screw in fastening screws -5- . Tighten to the specified torque. → Tightening torque: 2 Nm (1.5 ft lbs.)+0.5 Nm (+0.5 ft lbs.).

Fig 2: Installing Plug Socket Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
