Removing Sun Visor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

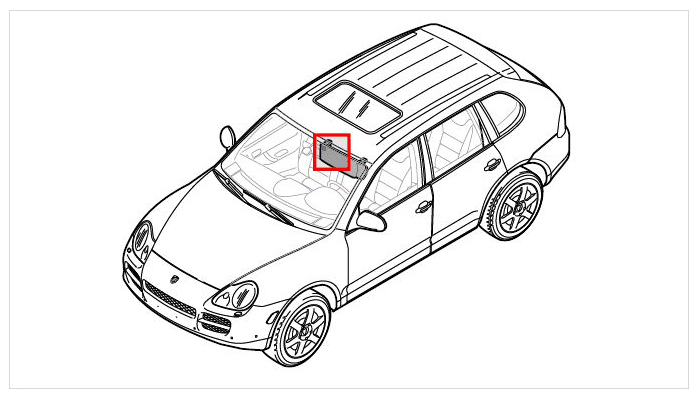

Fig 1: Identifying Sun Visor
G09412696Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Disengage adjustable part of the sun visor -1-  from the mounting saddle and pivot towards roof frame (-arrow A-  ).

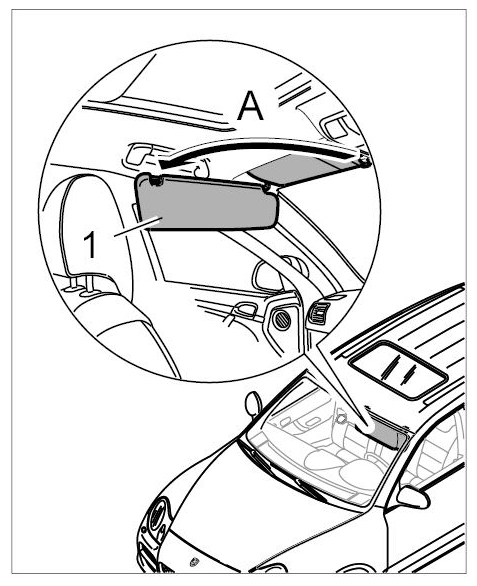

    Fig 2: Disengaging Adjustable Part Of Sun Visor
    G09412697Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release mounting saddle.
    1. 2.1. Unclip cover cap -2-  on the mounting saddle -3-  with a screwdriver and unfold (-arrow B-  ).
    2. 2.2. Unscrew fastening screw -4-  .

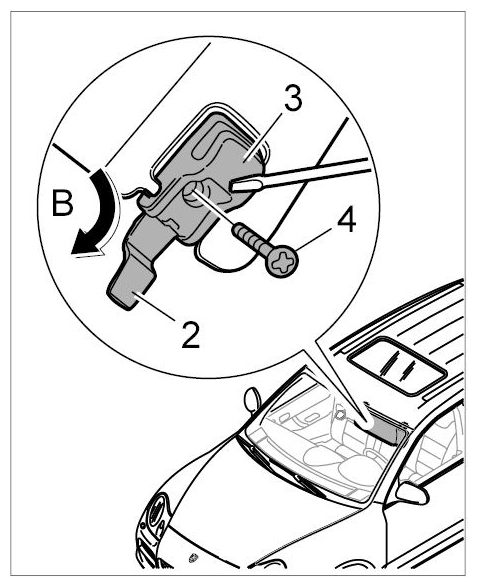

      Fig 3: Releasing Mounting Saddle
      G09412698Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Remove mounting saddle.
    1. 3.1. Fold rear sun visor -5-  downwards (-arrow C-  ).
    2. 3.2. Carefully insert a screwdriver between roof lining and mounting saddle and unclip mounting saddle -3-  (-arrow D-  ).
    3. 3.3. Remove lock -6-  from mounting saddle -3-  (-arrow F-  ).
    4. 3.4. Remove mounting saddle -3-  in direction of arrow (-arrow E-  ).

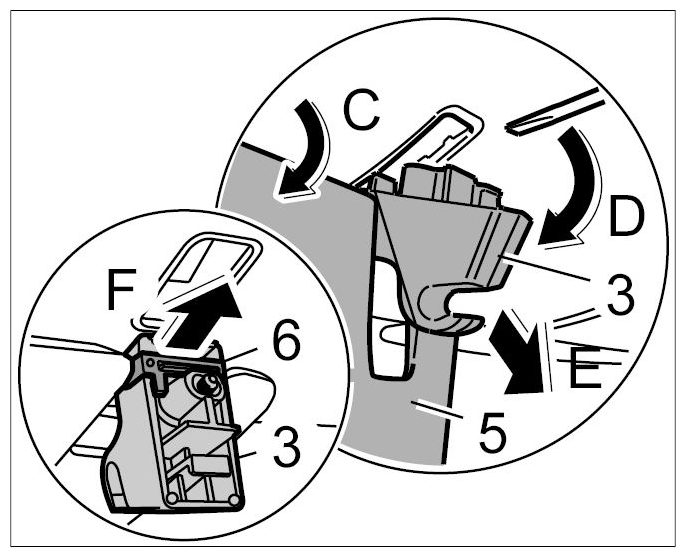

      Fig 4: Releasing Mounting Saddle
      G09412699Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Release cover for pivot bearing:
    1. 4.1. Pivot adjustable sun visor back into its normal position.
    2. 4.2. Carefully insert a screwdriver between roof lining and pivot bearing -7-  (-arrow G-  ) and release cover (-arrow H-  ).

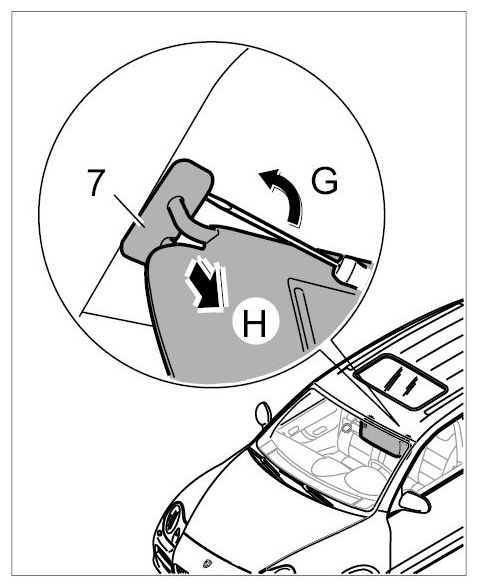

      Fig 5: Releasing Pivot Bearing Cover
      G09412700Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Remove pivot bearing.
    1. 5.1. Unscrew fastening screws -8-  .

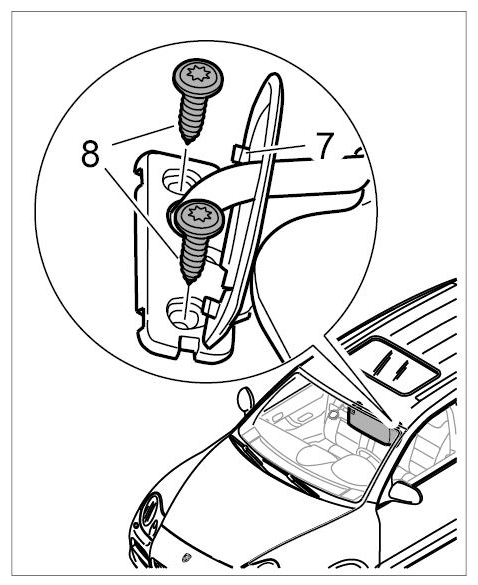

      Fig 6: Identifying Saddle Fastening Screws
      G09412701Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Remove sun visor and release electric plug connection.
    1. 6.1. Unclip sun visor -9-  and carefully lower it (-arrow I-  ), until the plug -11-  is accessible.
    2. 6.2. Release the locking tab -10-  for the electrical plug connection (-arrow K-  ) and pull off the plug -11-  (-arrow L-  ).
    3. 6.3. Remove sun visor -9-  .

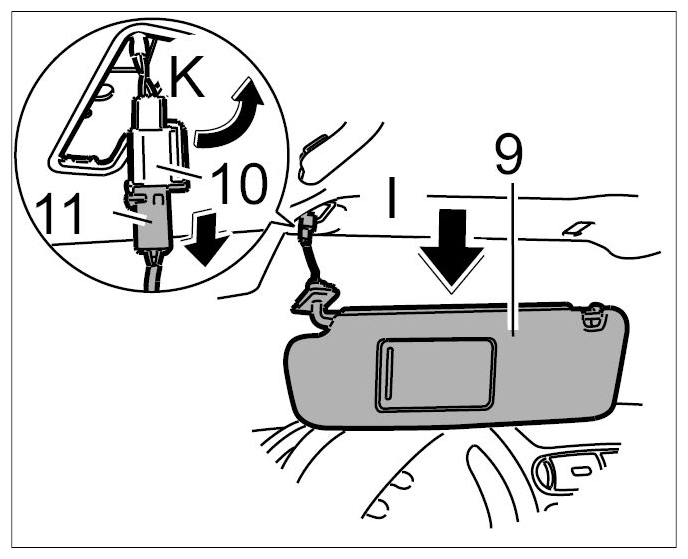

      Fig 7: Releasing Electrical Plug Connection Locking Tab
      G09412702Courtesy of PORSCHE CARS NORTH AMERICA, INC.
