Installing Sun Visor

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

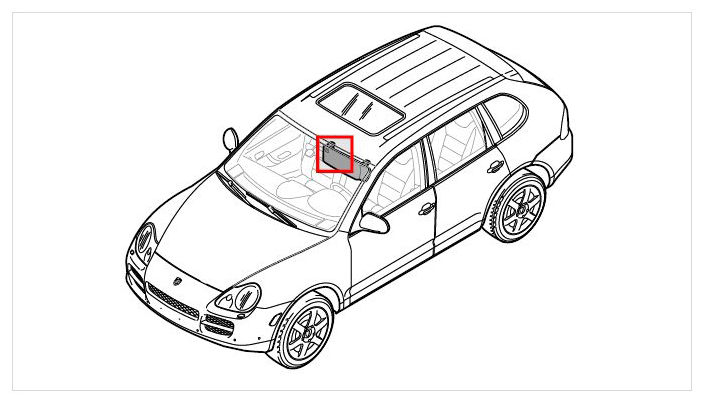

Fig 1: Identifying Sun Visor
G09412703Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Install sun visor.
    1. 1.1. Move sun visor -9-  into installation position (-arrow A-  ).
    2. 1.2. Insert plug for mirror light -11-  (-arrow B-  ).
    3. 1.3. Clip in sun visor -9-  completely (-arrow A-  ).

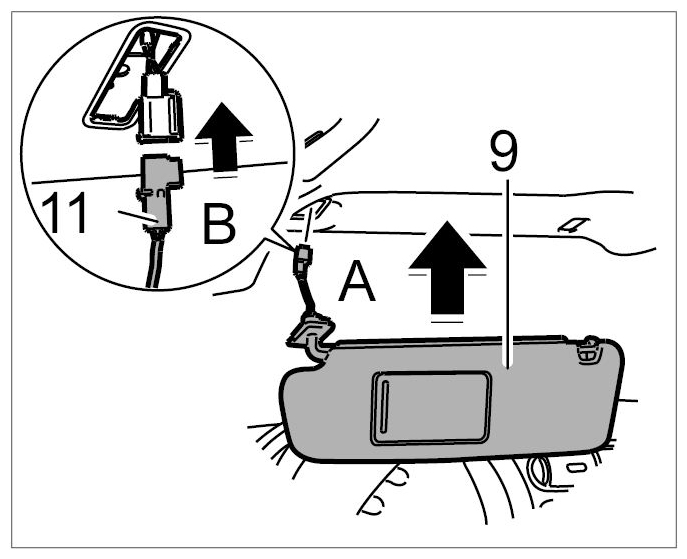

      Fig 2: Installing Sun Visor
      G09412704Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Install pivot bearing.
    1. 2.1. Screw in fastening screws -8-  .

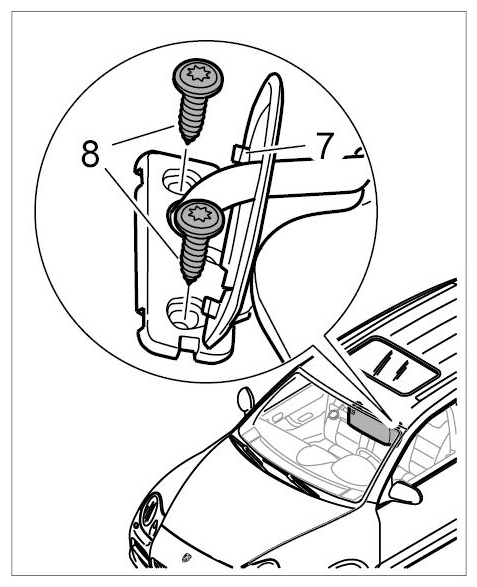

      Fig 3: Identifying Pivot Bearing Fastening Screws
      G09412705Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Clip in cover for pivot bearing.
    1. 3.1. Align and engage cover for pivot bearing -7-  4 (-arrow C-  ).

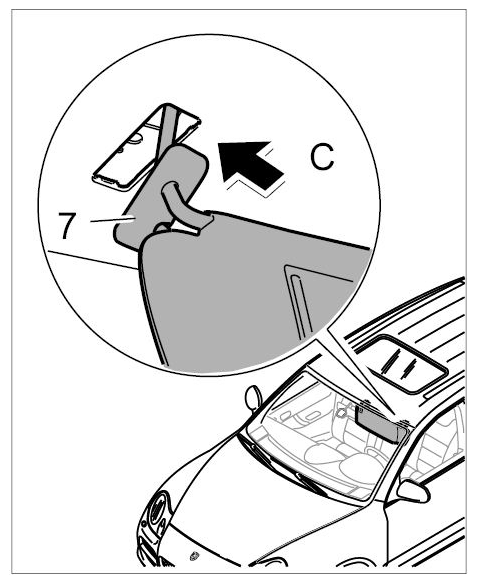

      Fig 4: Clipping Pivot Bearing Cover
      G09412706Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Move adjustable sun visor to lateral position.
    1. 4.1. Swivel adjustable part of the sun visor -1-  towards roof frame (-arrow D-  ).
    2. 4.2. Leave sun visor -5-  in unfolded position.

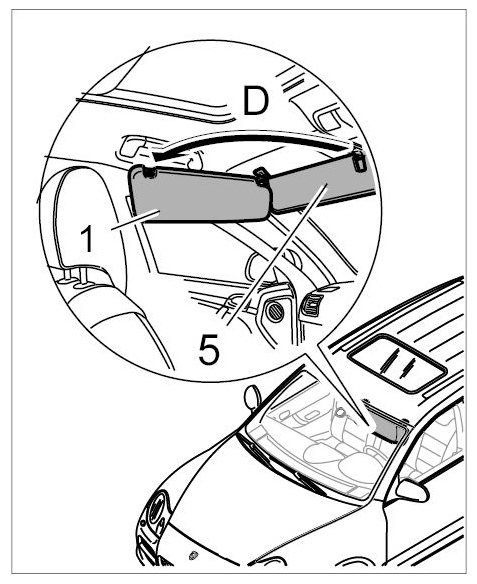

      Fig 5: Moving Adjustable Sun Visor To Lateral Position
      G09412707Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Install mounting saddle.
    1. 5.1. Insert lock -6-  in mounting saddle -3-  (-arrow E-  ).
    2. 5.2. Engage mounting saddle -3-  at the top on the roof liner (-arrow F-  ).
    3. 5.3. Swivel mounting saddle -3-  forwards towards the windscreen and clip in place (-arrow G-  ).
    4. 5.4. Pivot sun visor -5-  towards roof liner (normal position) (-arrow H-  ).

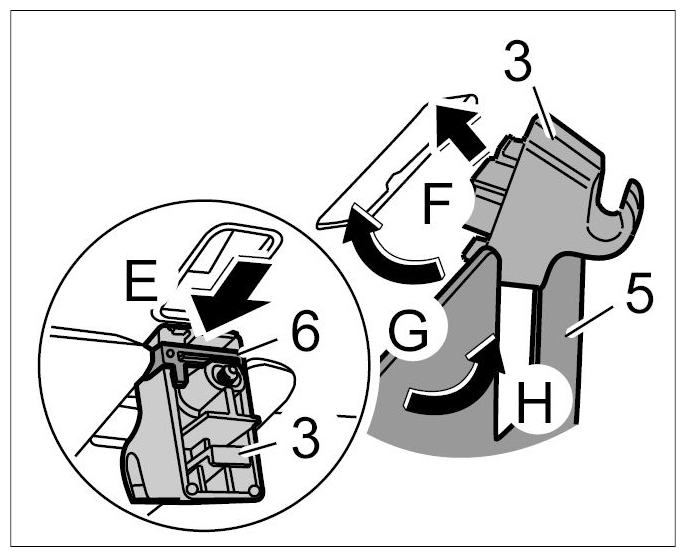

      Fig 6: Inserting Lock In Mounting Saddle
      G09412708Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  6. Fasten mounting saddle.
    1. 6.1. Unclip cover cap -2-  on the mounting saddle -3-  with a screwdriver (-I-  ) and unfold (-arrow K-  ).
    2. 6.2. Screw in fastening screw -4-  and tighten.
    3. 6.3. Close -2-  cover cap -arrow L-  .

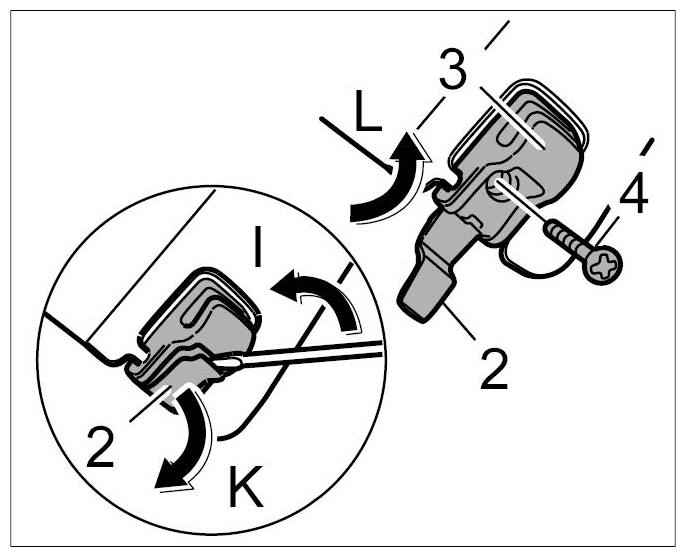

      Fig 7: Unclipping Cover Cap On Mounting Saddle Using Screwdriver
      G09412709Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Move swivelling sun visor to original position:
    1. 7.1. swivel adjustable part of the sun visor -1-  towards windscreen (-arrow M-  ).

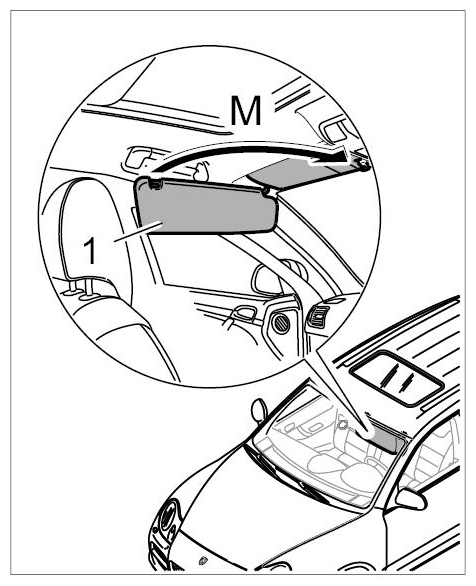

      Fig 8: Moving Swivelling Sun Visor To Original Position
      G09412710Courtesy of PORSCHE CARS NORTH AMERICA, INC.
