Installing Armrest Release

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

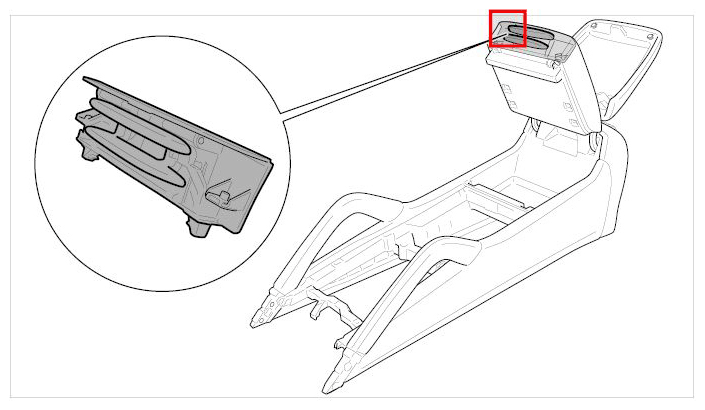

Fig 1: Identifying Armrest Release

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only on centre consoles in which the release was removed using the stop-gap measure.

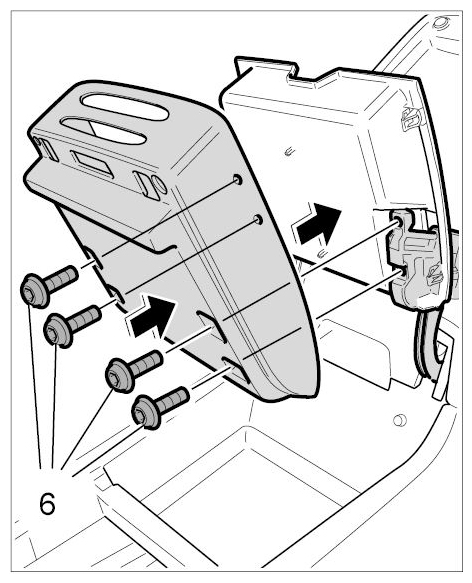

Place bottom half in position and screw in tightening screws -6- . → Tightening torque: 8 Nm (6 ft lbs.)

Fig 2: Installing Bottom Half
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

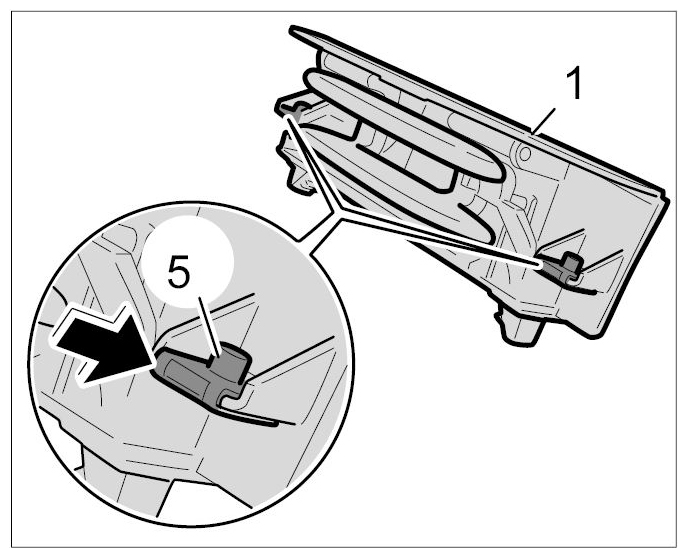

Screw on fastening nuts -5- .

Fig 3: Screwing Shelf Fastening Nuts
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

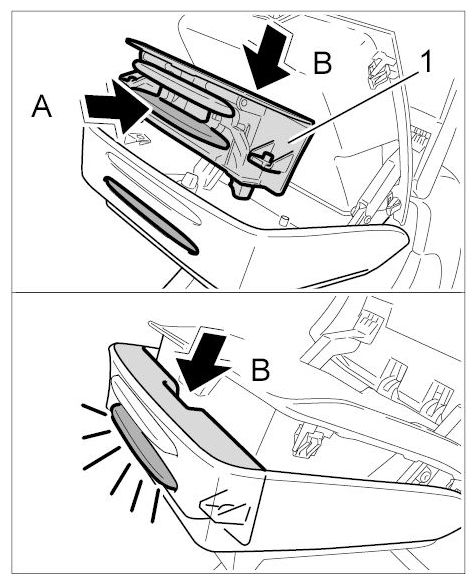

Place release in position.

Fig 4: Placing Release In Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Press lower release button -arrow A- and push release -1- downwards -arrow B- .

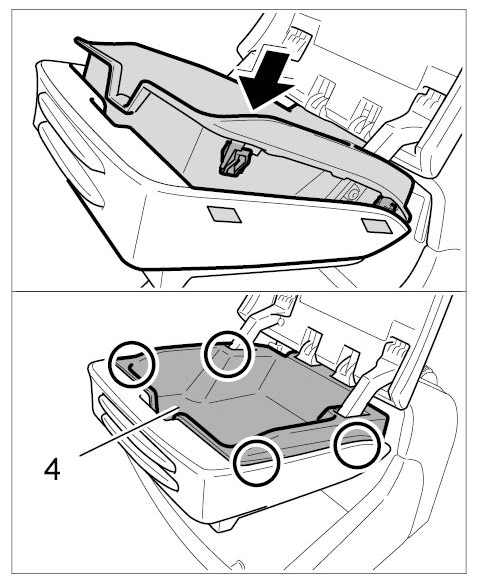

Swivel shelf -4- downwards and clip it in.

Fig 5: Installing Shelf Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

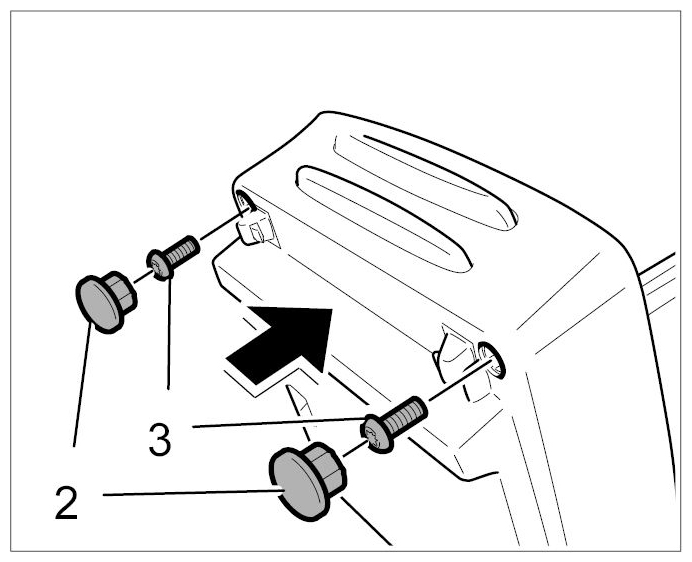

Screw in fastening screws -3- position caps -2- . → Tightening torque: 2 Nm (1.5 ft lbs.)

Fig 6: Installing Shelf Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press release buttons to check the release function.

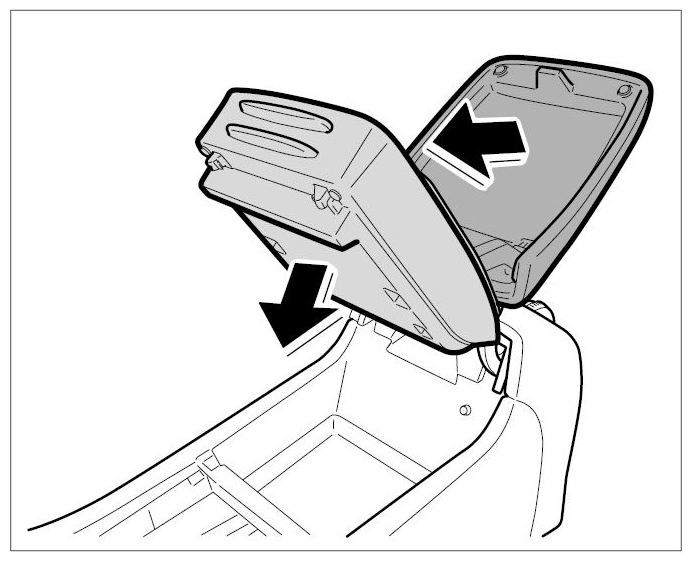

Close cover and shelf on armrest.

Fig 7: Closing Shelf Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
