Removing Rear Cover For Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

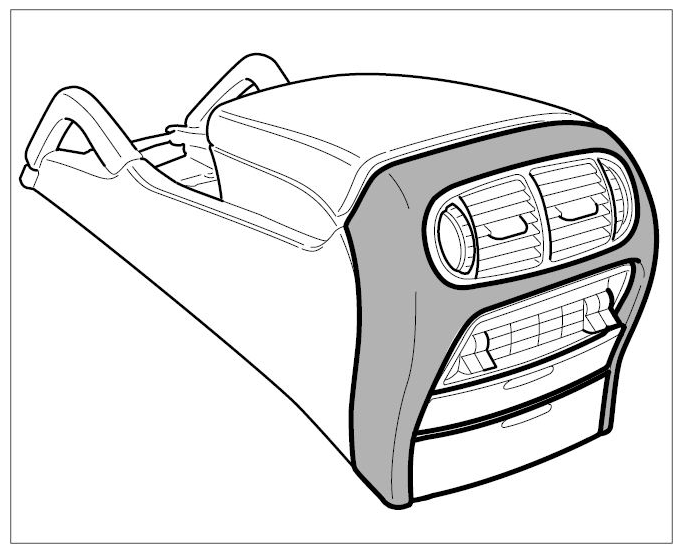

Fig 1: Identifying Rear Cover For Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

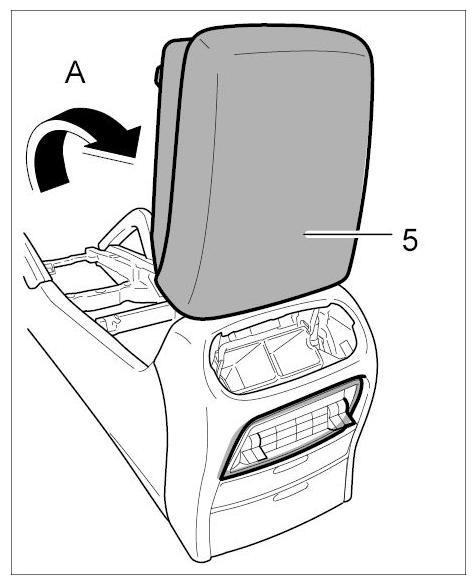

Open oddments tray -Arrow A- .

Fig 2: Opening Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

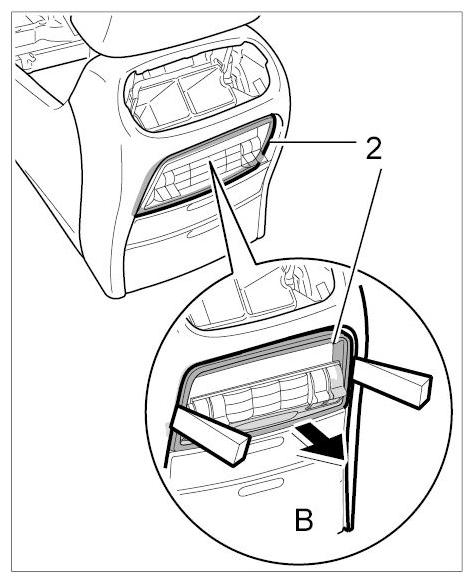

Unclip cover for air-conditioning control panel -2- (-Arrow B- ).

Fig 3: Removing A/C Control Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

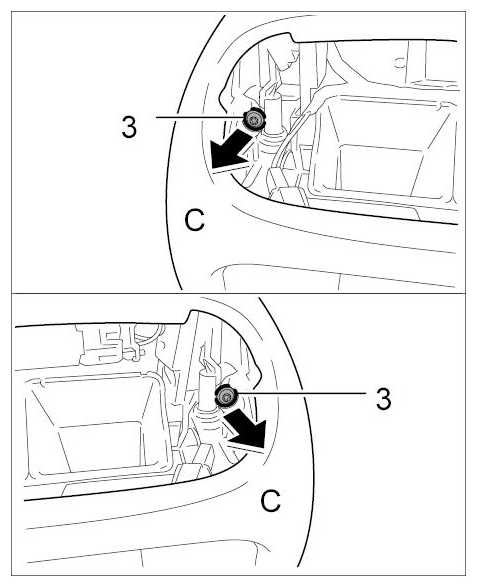

Screw out screws at the top -3- and remove them -Arrow C- .

Fig 4: Removing A/C Control Panel Cover Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

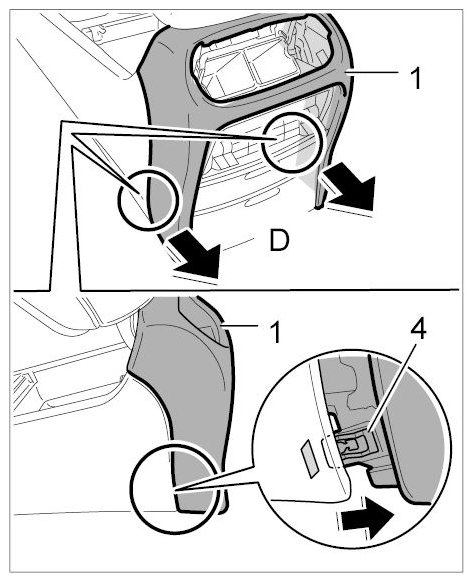

Loosen clip connection -4- at the bottom -Arrow D- .

Fig 5: Loosening Clip Connection At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

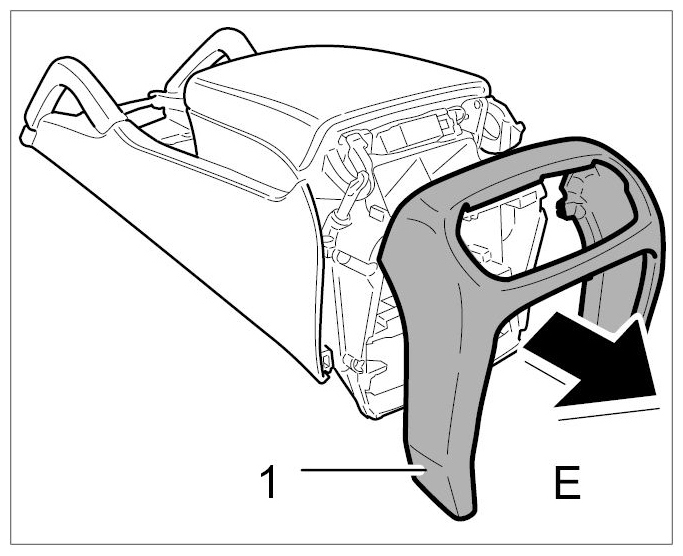

Remove cover -1- (-Arrow E- ).

Fig 6: Removing Control Panel Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
