Installing Rear Cover For Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

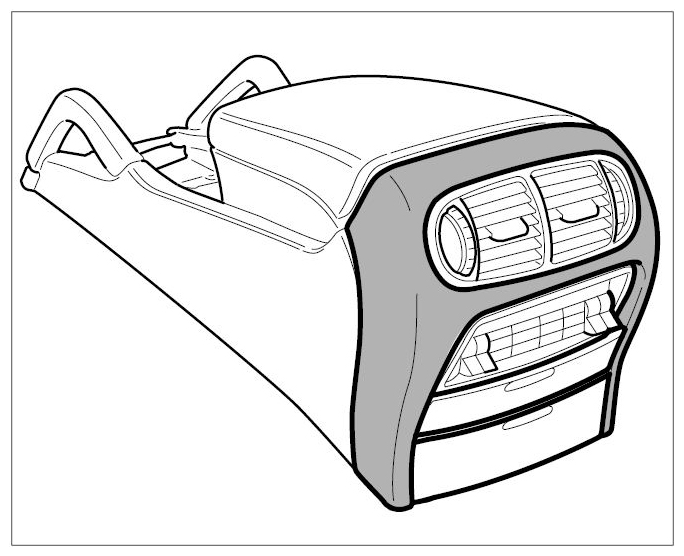

Fig 1: Identifying Rear Cover For Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

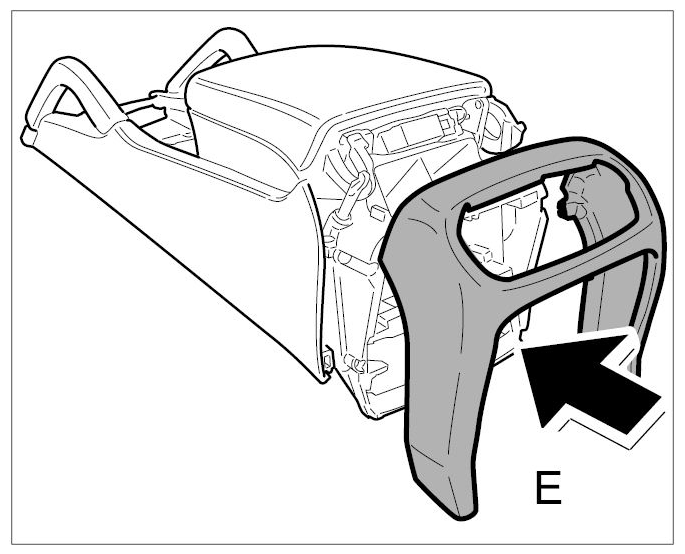

Position cover -Arrow E- .

Fig 2: Positioning Rear Cover For Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

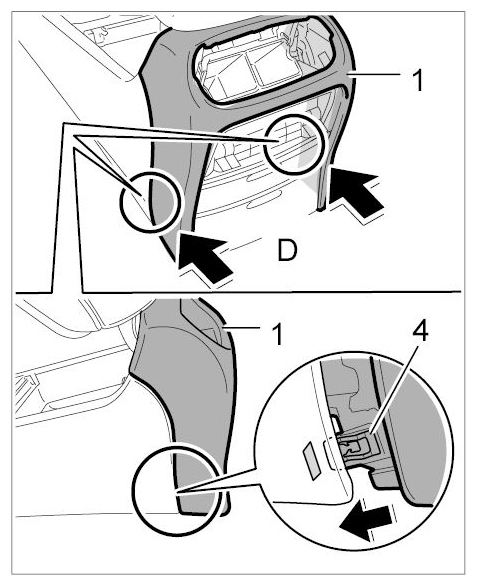

Clip in cover at the bottom -Arrow D- .

Fig 3: Clipping In Cover At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

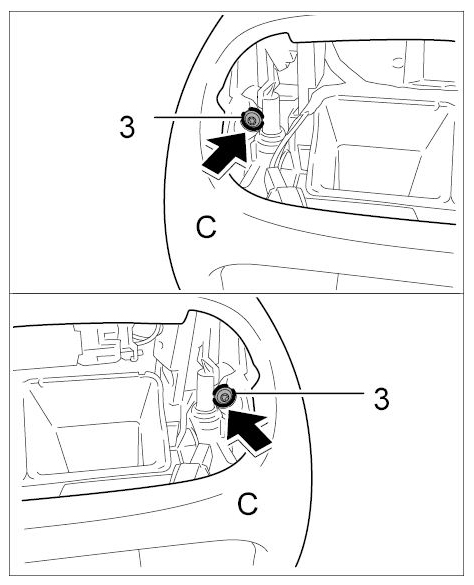

Insert and screw in screws at the top -3- (-Arrow C- ) and tighten to the specified tightening torque. → Tightening torque: 1.4 Nm (1.0 ft lbs.)+/- 0.5 Nm (+/-0.5 ft lbs.)

Fig 4: Installing Cover Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

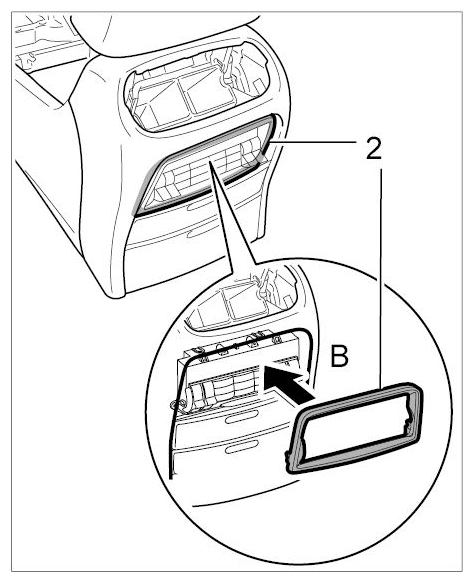

Clip in cover for air-conditioning control panel -2- (-Arrow B- ).

Fig 5: Clipping In Cover For A/C Control Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

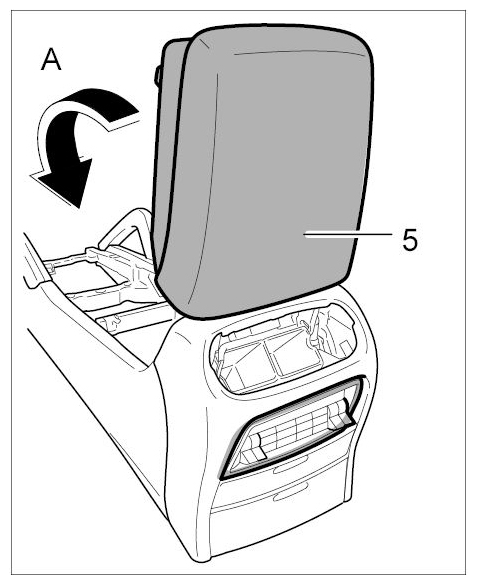

Close oddments tray -Arrow A- .

Fig 6: Closing Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
