Removing Pin For Armrest On Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

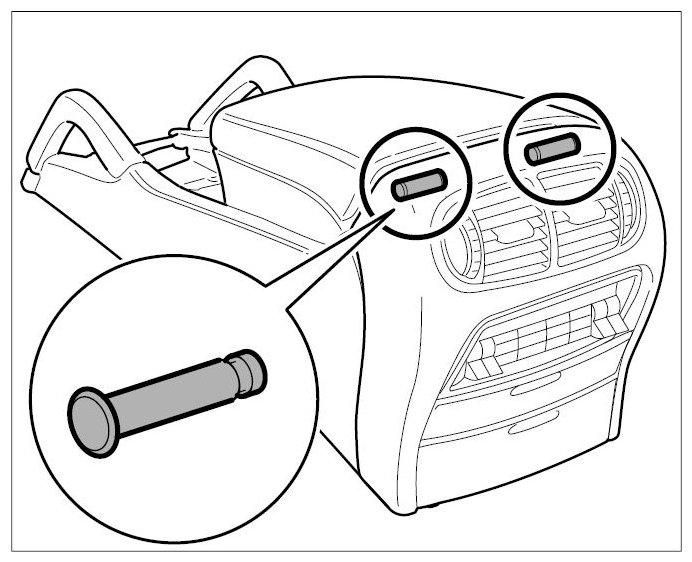

Fig 1: Identifying Centre Console Armrest Pin

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

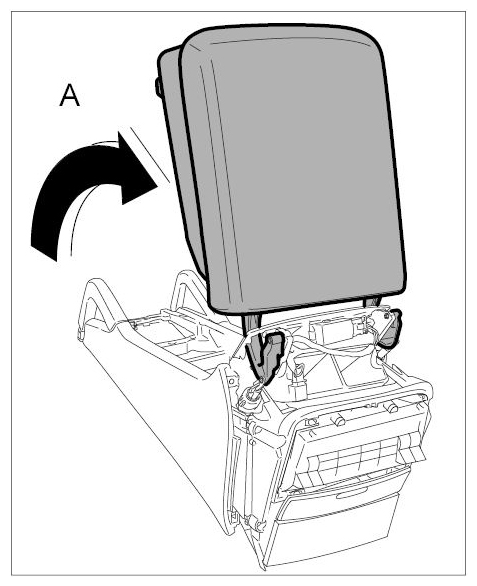

Open oddments tray -Arrow A- .

Fig 2: Opening Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

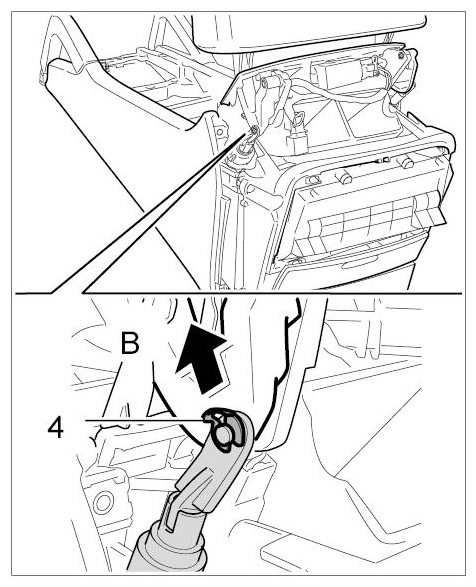

Unclip safety clip -4- on both dampers -Arrow B- .

Fig 3: Unclipping Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Before unhooking the damper, secure the oddments tray and prevent it from closing.

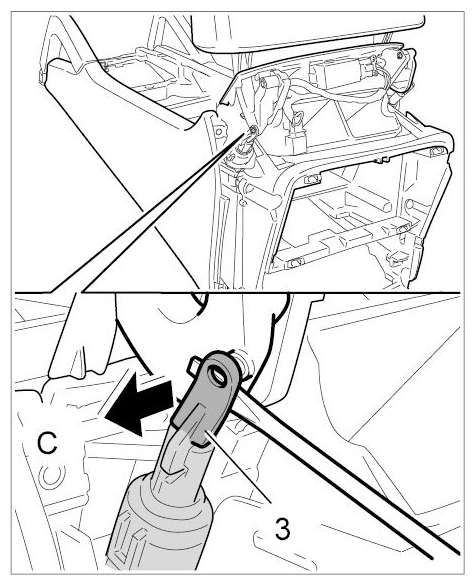

Unhook both dampers -3- (-Arrow C- ).

Fig 4: Unhooking Dampers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

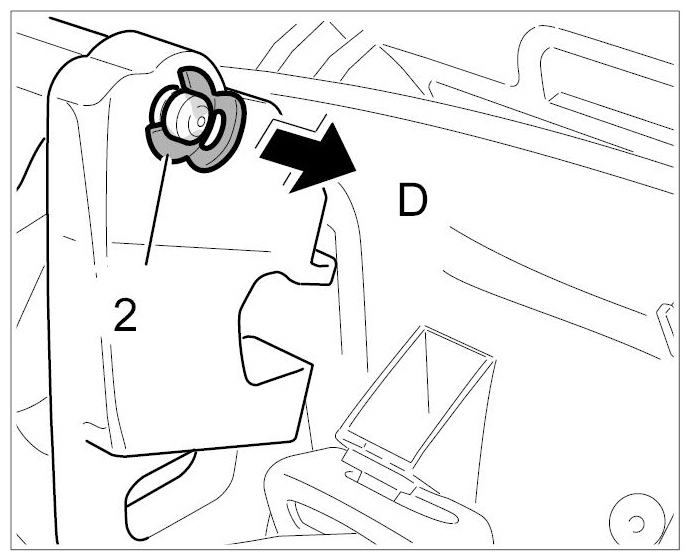

Unclip safety clip -2- on pin -Arrow D- .

Fig 5: Removing Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

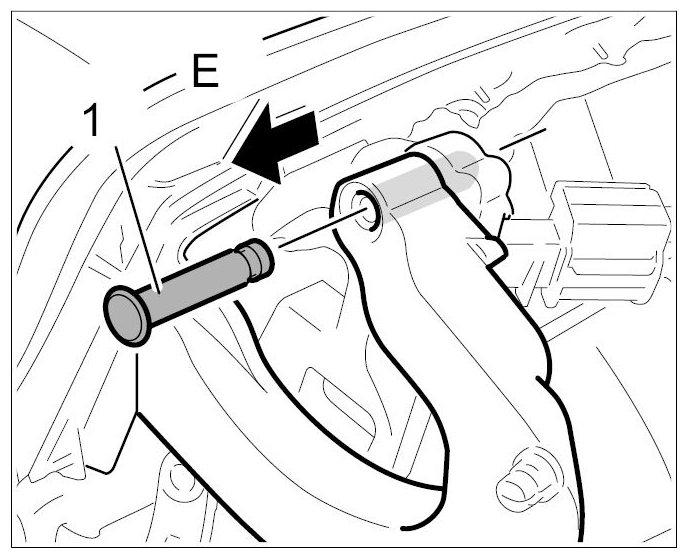

Remove pin -1- (-Arrow E- ).

Fig 6: Removing Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
