Installing Pin For Armrest On Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

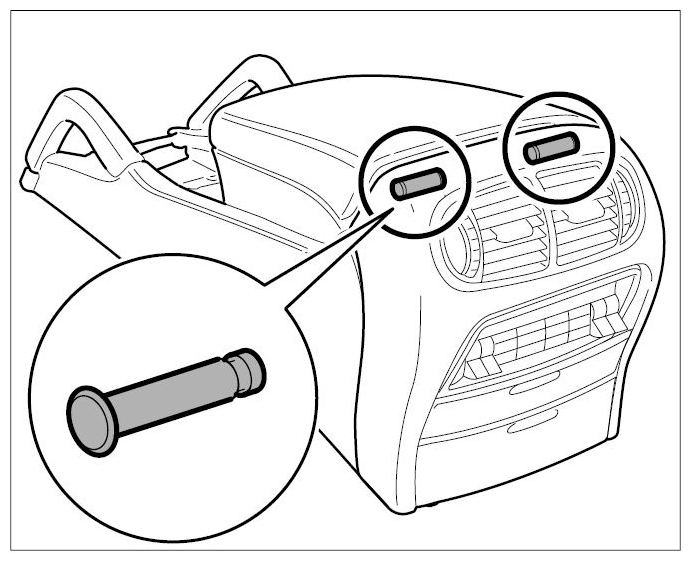

Fig 1: Identifying Centre Console Armrest Pin

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

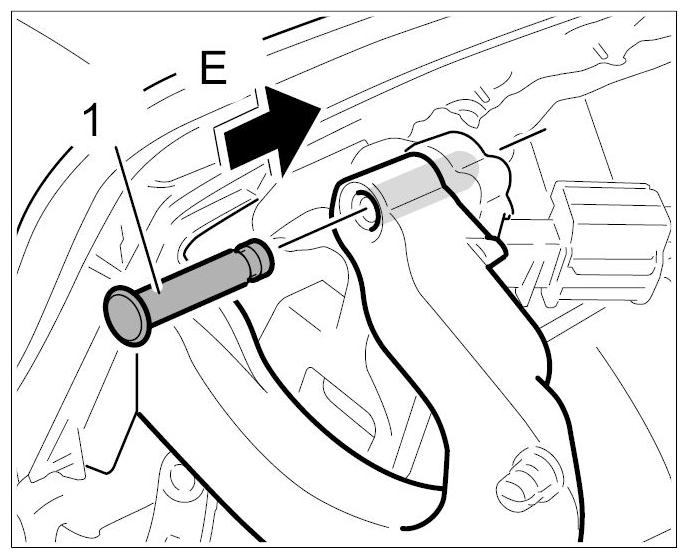

Insert pin -1- (-Arrow E- ).

Fig 2: Installing Centre Console Armrest Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

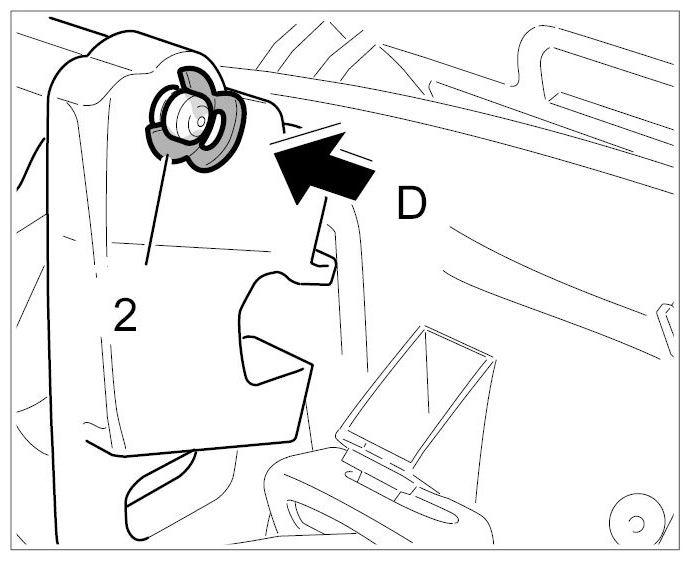

Clip safety clip -2- onto pin -Arrow D- .

Fig 3: Clipping On Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

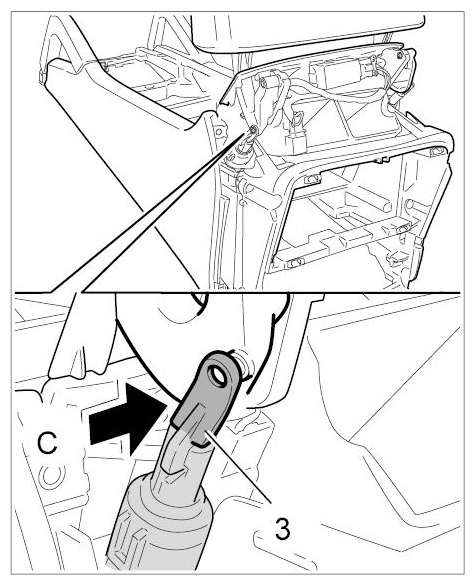

Hook in both dampers -3- (-Arrow C- ).

Fig 4: Hooking In Dampers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

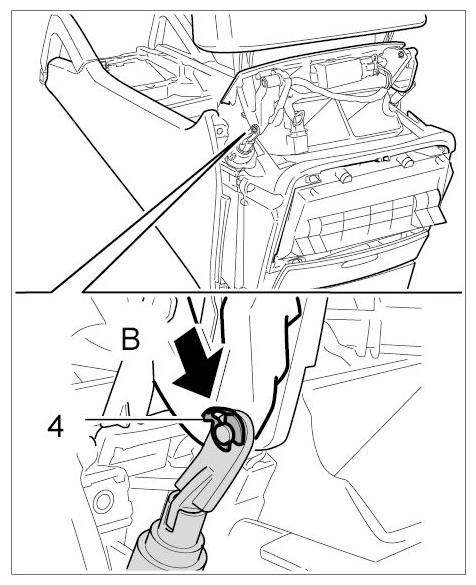

Clip in safety clip -4- on both dampers -Arrow B- .

Fig 5: Clipping In Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

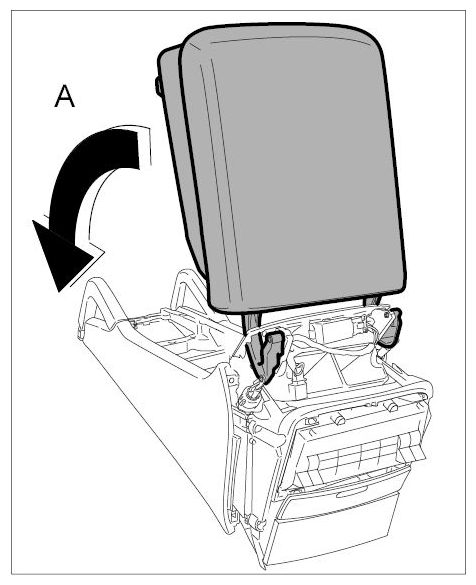

Close oddments tray -Arrow A- .

Fig 6: Closing Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
