Removing Damper For Armrest On Centre Console

WARNING: This page is about a different car, the 2010 Porsche Cayenne, 2009 Porsche Cayenne, and 2008 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

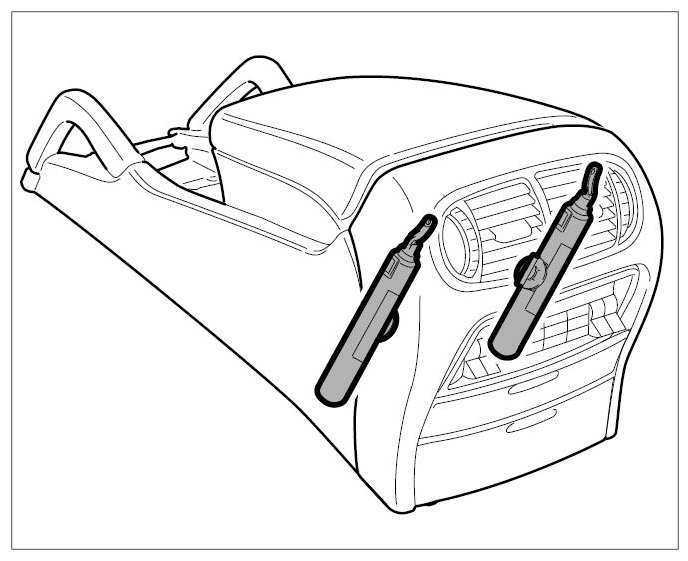

Fig 1: Identifying Damper For Armrest On Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

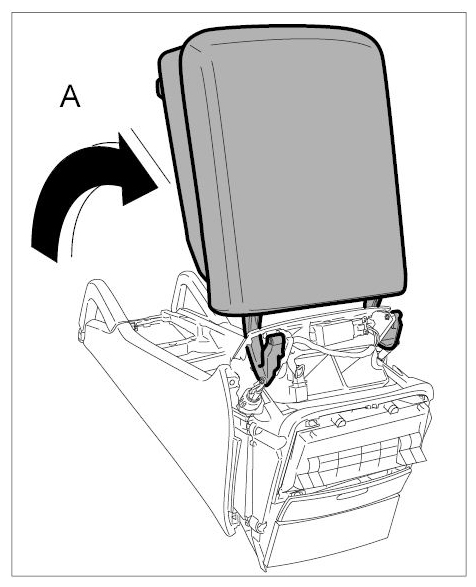

Open oddments tray -Arrow A- .

Fig 2: Opening Oddments Tray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

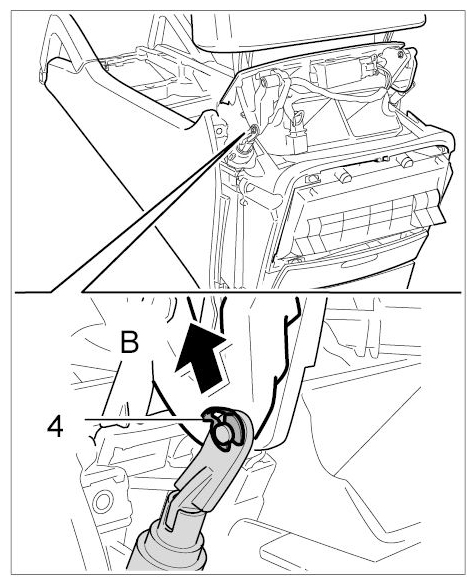

Unclip safety clip -4- on both dampers -Arrow B- .

Fig 3: Removing Oddments Tray Safety Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- Before unhooking the damper, secure the oddments tray and prevent it from closing.

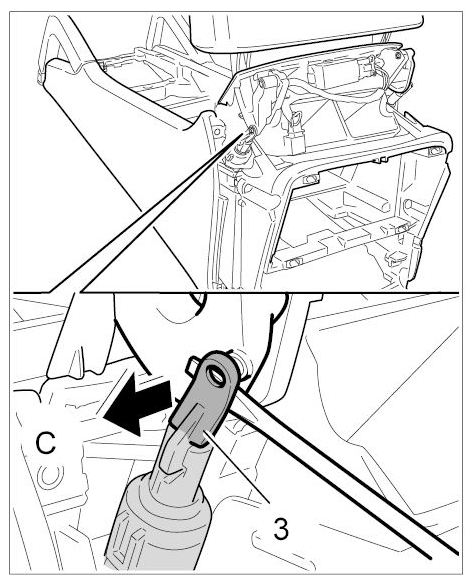

Unhook both dampers -3- (-Arrow C- ).

Fig 4: Removing Dampers Hooks
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

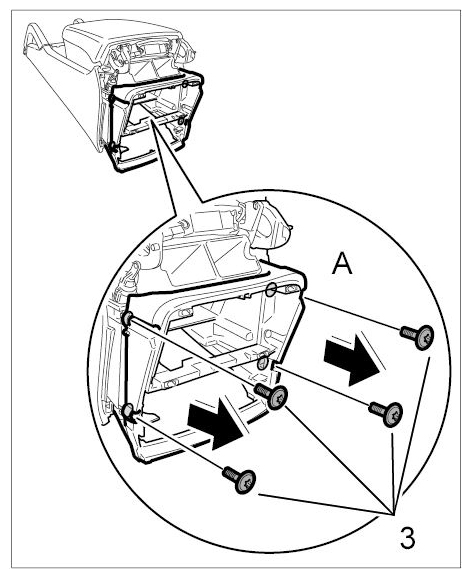

Unscrew fastening screws -3- (-Arrow A- ).

Fig 5: Removing Dampers Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen and remove securing frame.

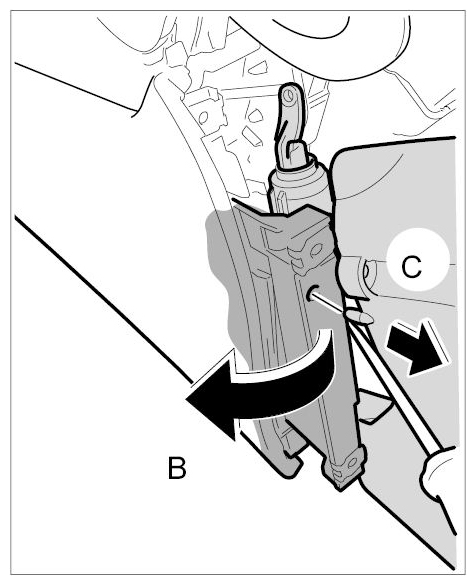

1. 5.1. Insert a screwdriver between centre console and securing frame and open up the centre console -Arrow B- . Remove the locating pins on both sides of the securing frame from the bores on the centre console -Arrow C- .

  Fig 6: Loosening Securing Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

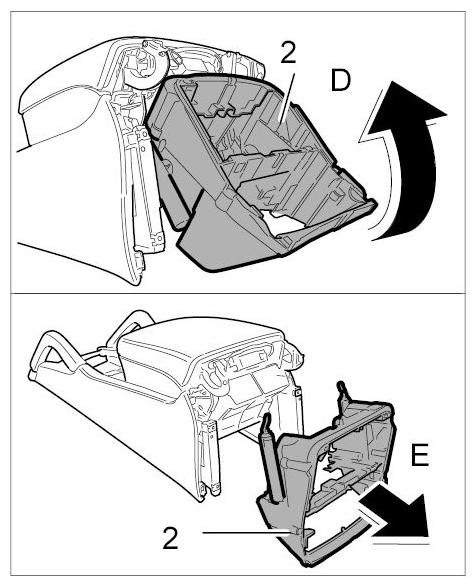

2. 5.2. Swivel securing frame upwards -Arrow D- and remove it -Arrow E- .

  Fig 7: Removing Securing Frame
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

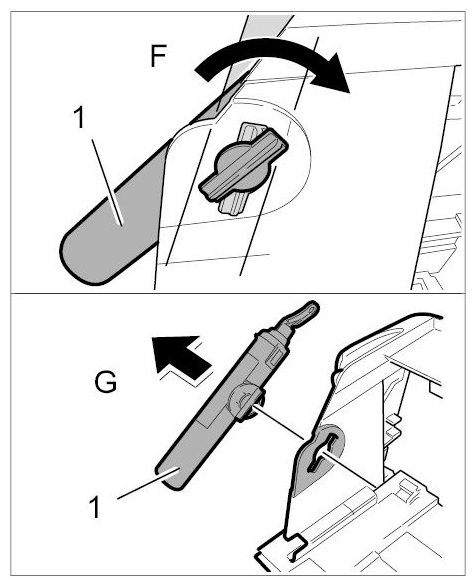

Turn damper -1- (-Arrow F- ), then unhook and remove it -Arrow G- .

Fig 8: Removing Damper From Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
